Foreign object inspection for full containers

Detect and remove minute foreign objects from liquid and paste-like products with precision. Ensure safety by integrating a compact, hygiene-friendly inspection system into your production line, capable of handling high-speed operations without missing contaminants in opaque packaging.

Detects and Removes Foreign Objects in Containers

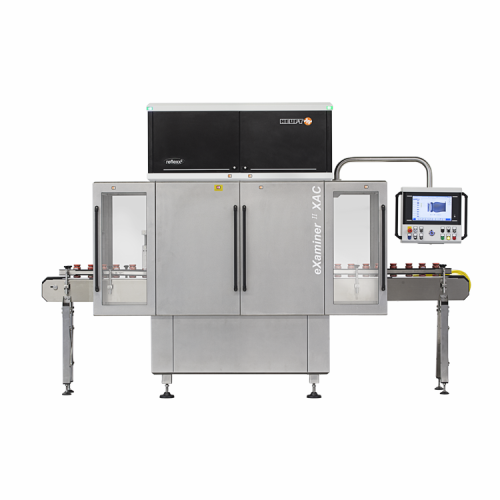

The HEUFT eXaminer II XAC is a state-of-the-art X-ray container inspection system designed for precise foreign object detection across beverage, food, and pharmaceutical production lines. Leveraging the hygiene-oriented HEUFTCleanDesign, it excels at identifying minute contaminants in both clear and opaque products using pulsed X-ray technology. Ideally suited for inspecting items such as juice bottles, soup cans, and syrup bottles, it integrates smoothly into high-speed, continuous operations. The system’s double sidewall and base inspection capabilities, coupled with a unique combination of X-ray strobes and full-field image converters, guarantee unmatched precision and low radiation exposure. Automated via HEUFTSPECTRUM II, it allows for effortless brand and format transitions, minimizing downtime and human intervention. Built with robust materials, it supports CIP systems to ensure efficient cleaning in hygienically sensitive environments. The HEUFT eXaminer II XAC provides comprehensive defect tracking with HEUFTreflexx A.I. image processing and HEUFTNaVi user guidance for intuitive operation, ensuring complete production line confidence.

Benefits

  • Enhances product safety by accurately removing contaminated containers, preventing costly recalls.
  • Integrates seamlessly into existing production lines, supporting high-speed operations up to 1,200 containers per minute.
  • Minimizes production interruptions with self-explanatory user guidance and automated brand transitions.
  • Lowers radiation exposure, ensuring safe operation while maintaining detection precision.
  • Facilitates easy maintenance with hygiene-optimized design, reducing cleaning time and contamination risks.

General


Applications
Beverages,Liquid food,Spreadable food,Metal packaging,Plastic packaging,Paste-like food,Foods,Glass packaging,Pharmaceuticals
End products
Beer bottles,Sauce bottles,Soda cans,Olive oil bottles,Soup cans,Milk cartons,Capsule bottles,Yogurt cups,Peanut butter jars,Jam jars,Syrup bottles,Wine bottles,Juice bottles
Steps before
Filling,Sealing
Steps after
Sterilization,Packing,Labeling
Input ingredients
liquid food,paste-like food,spreadable food,full containers,containers with foreign objects,opaque products,jars,cans
Output ingredients
faulty containers removed,inspected containers,safe products,products without foreign objects
Market info
HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.

Technical Specifications


Detection type
X-ray
Performance range
Up to 1,200 containers per minute
Radiation emission
Unequalled low
Image processing
Real-time with AI
Product tracking
Exact
Filling quantity detection
Optional additional function
Automation
Highly automated HEUFTSPECTRUM II platform
Self-explanatory user guidance
HEUFT NaVi
Image conversion technology
Full-field image converters

Operating Characteristics


X-ray Inspection Method
Pulsed X-ray Technology
Inspection Mode
Full Container,Sidewall,and Base
Automation Level
Highly Automated
Product Tracking
Real-time Image Processing
User Guidance
Audiovisual,Self-explanatory
Hygiene Design
HEUFTCleanDesign
Modularity
Expandable functions
Data Networking
Real-time Information Transmission
Changeover Time
Automatic Adjustment

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Glass / Plastic / Metal
Foreign Object Type
Glass Splinters / Metal Pieces / Stones
Package Inspection Type
Full Container Inspection

Physical Characteristics


Compact footprint
Compact design
Control panel type
Touchscreen
Hygiene-friendly design
HEUFTCleanDesign
Machine platform
HEUFTSPECTRUMII
X-ray strobes
Unique combination for precision

Custom Options


Control panel type
Touchscreen
HMI interface
HEUFTNaVi
Integration possibilities
Network-based connection (Gigabit Ethernet)
Expandability
Modular design for function extensions
