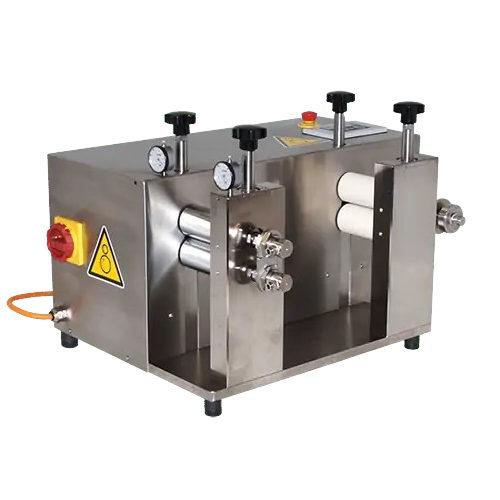

Foil roller for precise extrudate calibration

Achieve uniform film thickness and precise calibration of extrudates with an adjustable, temperature-controlled rolling system, ideal for transforming round and flat materials into consistently wound films.

Calibrates and Rolls Extrudates into Defined Films

The Film and Foil Roller from Three-Tec is engineered to enhance precision in the processing of flat and round extrudates into defined films. Featuring a temperature-controlled set of rolls, adjustable tension, and a magnetic coupling for controlled traction, this equipment ensures uniform film thickness and quality. This system is particularly advantageous in industries such as food, chemical, plastics, and packaging, catering to applications like packaging films, blister packs, and laminate films.

The Film and Foil Roller integrates seamlessly into existing production lines with its frequency converter-controlled operations, allowing for continuous and automated processing. Its adjustable draw rollers and rewinder tension enable easy customization, optimizing the handling of various extrudate forms, from solid to granular. Material construction options ensure durability and compatibility with diverse processing environments. Additionally, this equipment supports process industry companies with engineering support to tailor machine configurations to specific operational requirements, maximizing productivity and efficiency.

Benefits

  • Ensures consistent film quality with precise calibration and thickness control.
  • Increases operational efficiency by integrating easily into existing production lines.
  • Reduces manual intervention through automated frequency converter controls.
  • Minimizes waste and enhances material utilization with adjustable tension settings.
  • Supports diverse production needs with customizable configurations and engineering support.

General


Applications
Flat extrudates,Film materials,Round extrudates,Process equipment
End products
Optical films,Adhesive films,Plastic sheets,Blister packs,Laminate films,Packaging film
Steps before
Extrusion,Calibration
Steps after
Winding,Spooling
Input ingredients
flat extrudates,round extrudates
Output ingredients
calibrated film,defined thickness film,wound spool
Market info
Three-Tec is known for its expertise in manufacturing precision dosing and feeding systems for industrial applications, with a strong reputation for customizable engineered-to-order equipment and innovative solutions tailored to specific customer needs.

Technical Specifications


Film Thickness Control
Defined thickness
Roller Adjustment
Adjustable pair of rolls
Temperature Control
Temperature-controlled rolls
Tensile Force Control
Adjustable via magnetic coupling
Integration
Integrated control or interface for higher-level system
Automation
Controlled by frequency converter

Operating Characteristics


Working mechanism
Magnetic coupling
Integrated steps
Calibration of extrudates
Batch vs. continuous operation
Continuous
Automation level
Integrated frequency converter

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Adjustable traction force
Yes
Temperature-controlled rolls
Yes
Rewinder or spool
Included
Magnetic coupling
Yes
Control panel type
Integrated frequency converter
Machine footprint
Compact
Film thickness control
Yes
Operation type
Simple operation
Integration capability
Interface for system integration

Custom Options


Control Integration
Integrated or external control
Traction Force Adjustability
Adjustable traction force between film rollers,draw rollers,and reel
System Integration
Interface for higher-level system integration
Magnetic Coupling
For adjustable tensile force
