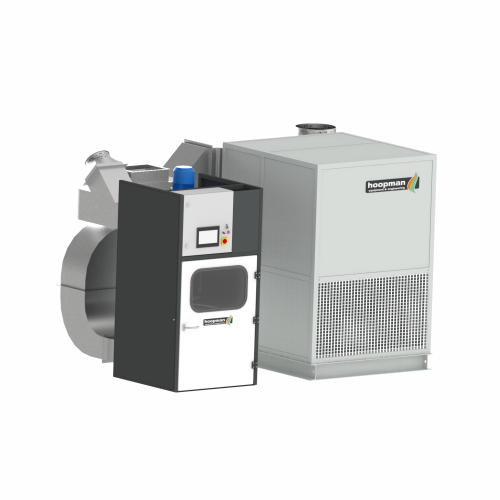

Fluid bed drying system for seed pellets

Achieve precise moisture control and optimal seed conditioning with this fluid bed dryer, designed for efficient drying of pelleted and naked seeds in batch operations.

Dries and Conditions Seed Pellets Efficiently

The FB Fluid Bed Cabinet Dryer by Hoopman Equipment & Engineering is tailored for seed processing applications, offering precise drying and conditioning for pelleted and naked seeds. Utilizing a fluidization principle through controlled negative pressure, the FB Cabinet Dryer ensures consistent moisture removal, making it ideal for processing primed corn, coated sunflower, and dried soybean seeds.

Each unit is equipped with a PLC and a 10″ HMI control system, allowing you to log and store specific drying protocols for repeated precision. It handles up to 1,000,000 wet pellets or approximately 100 liters of seed per batch, making it well-suited for batch operations. Its modular design supports integration with dust extraction and conditioning systems, enhancing flexibility and scalability.

With an energy-efficient 4 kW frequency-controlled main fan and a heat exchanger air inlet, this equipment optimizes energy usage while maintaining high throughput. The system is designed for easy integration into existing production lines, offering plug-and-play compatibility and an external hot water circuit for seamless operation. Available in durable aluminum and mild steel materials, it ensures long-term performance with minimal wear, while its local logging feature supports USB exports in CSV format for convenient data management and analysis.

Benefits

  • Enhances seed quality through consistent moisture control and conditioning.
  • Offers scalability with a modular design, easily upgrading to meet production demands.
  • Reduces operational energy costs with a frequency-controlled fan and efficient heat exchanger.
  • Streamlines data management with automated logging and USB export capability.
  • Integrates seamlessly into existing lines, minimizing setup time with plug-and-play operation.

General


Applications
Pelleted seeds,Seed pellets,Agricultural seeds,Naked seeds
End products
Dried soybean seeds,Coated sunflower seeds,Processed lettuce seeds,Pelleted tomato seeds,Primed corn seeds,Enhanced rice seed pellets
Steps before
priming,disinfection
Steps after
conditioning,coating,sorting,pelleting
Input ingredients
primed seed,pelleted seed,wet pellets,naked seeds
Output ingredients
dried seed,dried pellets
Market info

Technical Specifications


Fluidization method
Negative pressure
Holding capacity
100 liters
Material container capacity
1,000,000 wet pellets or approx. 100 liters seed
Automation
PLC-controlled
Main fan power
4 kW
Control interface
10″ Vipa TFT screen
Air inlet
Directly through heat exchanger 1000x400mm
Heating power
20 kW
External connection
Hot water circuit
Connector type
5P 16 round EU connector
Temperature logging
Local with USB export (CSV)

Operating Characteristics


Working mechanism
Fluid Bed Drying
Batch vs. continuous operation
Batch
Automation level
PLC controlled
Integrated steps
Dust-extraction,Conditioning

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material Container Size
100 liters
Seed Type
Pellets / Naked Seeds

Physical Characteristics


Machine footprint
Compact / Modular design
Material container size
100 liters
Holding Bucket Capacity
100 liters / 1,000,000 wet pellets
Material
Aluminium for bucket,mild steel for cart
Control panel type
10" Vipa TFT screen
Discharge method
Special system for emptying material containers

Custom Options


Control panel type
10" HMI screen
Integration possibilities
PLC-controlled system
Connectivity
USB export function (CSV)
Dust extraction integration
Optional
Conditioning system integration
Optional
