Flow testing system for seed coating evaluation
Ensure accurate seed flow assessment in coating processes, detecting changes in flow characteristics critical for achieving optimal seed treatments.
Measures and Tests Seed Flow Characteristics

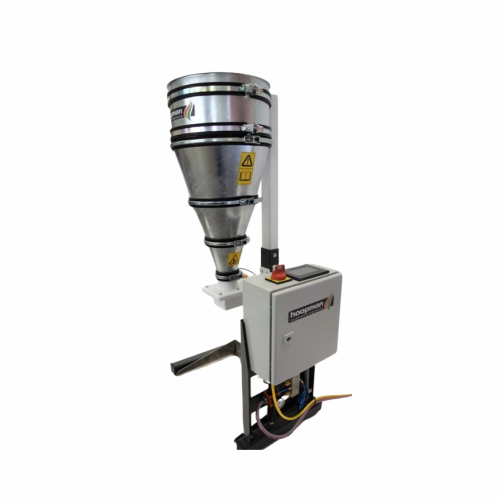

The FT Flowtester from Hoopman Equipment & Engineering is a precise bench-top flow measurement system designed specifically for seed processing applications. This manual apparatus allows you to test and weigh the flow characteristics of seeds before and after coating, drying, or conditioning. Simply place the seed material into the hopper, set the valve’s opening time, and observe as the system facilitates accurate flow testing, allowing you to detect any variations in seed behavior. Ideal for agricultural, seed processing, and horticultural industries, it plays a crucial role in ensuring that seeds are optimally conditioned for further processing. Adaptable for laboratory and processing departments, the FT Flowtester ensures compatibility with various container sizes and supports effective production line integration.
Benefits
- Ensures high accuracy in detecting flow variations, improving seed treatment outcomes.
- Enables seamless integration into existing lab setups with adjustable platform height for various containers.
- Facilitates quality assurance by providing precise, repeatable testing results for seed processing.
- Supports cost-effective operations with manual, easy-to-use design.
- Enhances adaptability across agriculture and horticulture sectors by accommodating multiple seed types and treatments.
- Applications
- Agricultural products,Bioengineering materials,Seed treatments,Coating materials,Seeds
- End products
- Seed pellets,Dried seed products,Bioengineered seed coatings,Primed seeds,Coated seeds
- Steps before
- Seed Loading,Hopper Filling
- Steps after
- Weighing,Flow Characteristic Analysis,Drying,Coating,Conditioning
- Input ingredients
- seed
- Output ingredients
- dosed amount,flow characteristics,weighed seed,coated seed,dried seed,conditioned seed
- Market info
- System Type
- Flow Testing System
- Testing Scope
- Flow Before and After Coating/Drying
- Chamber Capacity
- Supports Various Container Sizes
- Height Adjustability
- Variable Platform Height
- Operation
- Manual Valve Operation with Adjustable Timer
- Portability
- Portable Design
- Control Type
- Button Activated Valve
- Measurement Method
- Weight-Based Flow Characteristic Measurement
- Application
- Seed Flow Testing
- Flow testing mechanism
- Batch
- Operation level
- Manual
- Flow measurement method
- Weight-based
- Container adaptability
- Height adjustable
- Manual operation
- Press button start
- Feed type
- Seed flow
- Integration level
- Standalone
- Control type
- Time-based valve control
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container compatibility
- Multiple container sizes
- Discharge method
- Slide with adjustable height
- Control panel type
- Push-button operation
- Control panel type
- Manual
- Container size flexibility
- Adjustable platform height
- Valve opening time setting
- Adjustable
