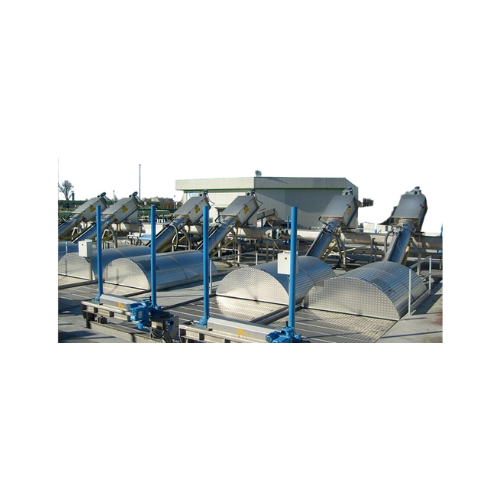

Fine drum screens for wastewater treatment

Streamline your wastewater treatment process by seamlessly integrating a rotating fine drum screen, efficiently handling screening, washing, conveying, and dewatering in a single, automated unit that eliminates the need for multiple stages.

Screens, Washes, Conveys, and Dewaters Wastewater

The SPIRAMATIC VSA Fine Drum Screen from WAMGROUP offers an innovative solution for effective wastewater treatment across both municipal and industrial applications. This equipment is designed with a rotating drum screen, conveyor screw, and compaction zone to combine screening, washing, conveying, and dewatering processes into one cohesive unit. Ideal for treatment facilities, it ensures high capture efficiency by utilizing a triple face seal that minimizes bypass of fibrous materials like hair. Available with a range of filter mesh sizes, including options for 1.0 to 6.0 mm, it allows flexibility for various waste streams. The unit supports both in-channel and in-tank installations, facilitating seamless integration into existing processes. In terms of construction, it features a robust frame of 304L or 316L stainless steel and spiral components manufactured from specialized ST 52 steel, emphasizing durability and corrosion resistance. Energy-efficient operations are ensured through its low power requirements, while its design minimizes maintenance needs, thanks to features like self-cleaning mechanisms and a self-lubricating bronze bushing. Options for customization include alternative screen types and control panel configurations, making this equipment adaptable to a wide range of wastewater treatment scenarios.

Benefits

  • Enhances treatment efficiency by integrating multiple processes into a single unit.
  • Minimizes operational costs with low energy consumption and reduced maintenance needs.
  • Increases solids capture rate through a proprietary triple face seal design.
  • Allows for versatile installation in various setups with in-channel and in-tank adaptability.
  • Offers long-term durability with high-quality stainless steel construction and self-lubricating components.

General


Applications
Fruit processing wastewater,Plastics recycling industry wastewater,Sludge treatment,Clean water treatment,Pulp processing wastewater,Beverage industry wastewater,Tanneries,Municipal wastewater,Industrial solid waste handling,Starch processing,Animal by-products processing,Animal by-products handling,Catering wastewater,Incinerators,Food processing wastewater,Paper processing wastewater,Dyeing works,Industrial wastewater,By-products processing,Vegetable processing wastewater
End products
Steps before
Screening,Pretreatment,Washing
Steps after
Conveying,Dewatering,Compaction,Solids Discharge
Input ingredients
wastewater,municipal waste,industrial waste,organic matter,waste screenings,fibrous materials
Output ingredients
dewatered screenings,compacted solids,washed out organic substances
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Filter mesh sizes for MBR pre-treatment
1.0 – 1.5 – 2.0 – 3.0 mm round holes
Filter mesh sizes (other than MBR use)
0.5 – 1.0 – 2.0 – 3.0 – 4.0 – 5.0 – 6.0 mm wedge wire
Channel width
600 ~ 3,000mm
Incline angle
35 degrees
Frame material
304 L / 316 L SS
Spiral material
Special ST 52 steel,or 304 L / 316 L SS
Triple face seal
Maximum capture efficiency of fine solids
Energy consumption
Low
Motor protection
Alternative voltage and frequency available
Cleaning method
Spray bar and cleaning brush
Bushing material
Self-lubricating bronze
Solids discharge method
Discharge chute into a container or compactor
Alternative application options
In-channel and in-tank application

Operating Characteristics


Working mechanism
Rotating drum screen
Integrated steps
Screening,washing,conveying,dewatering
Inline operation
Yes
Energy efficiency
Low energy consumption
Cleaning method
Self-cleaning,spray nozzles,brush
Batch vs. continuous operation
Continuous
Automation level
Optional control panel

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes (suitable for wastewater treatment)
Cleanability
Self-cleaning system
Corrosive resistance (e.g. acids)
AISI 304L / 316L stainless steel
Density/particle size
Designed for various solids

Physical Characteristics


Drum shape
Cylindrical
Drum size
Variable
Channel width
600 ~ 3,000 mm
Frame material
304 L / 316 L Stainless Steel
Incline angle
35 degrees
Spiral material
ST 52 Steel,or 304 L / 316 L Stainless Steel

Custom Options


Control panel type
Available with alternative degree of motor protection
Screen types and sizes
Alternative screen types and sizes available
Application placement
Available for both in-channel and in-tank application
Motor protection
Alternative voltage and frequency available
Covers
Removable,sliding aluminium covers or fixed stainless steel covers
Additional features
Bagger and Heating device available as accessories
