Filtration testing for spinnable polymer purity
Ensure the purity of your thermoplastic melts and spinnable polymers by accurately identifying foreign particle concentrations, essential for maintaining optimal production quality and consistency.
Filters and Analyzes Polymer Contaminants

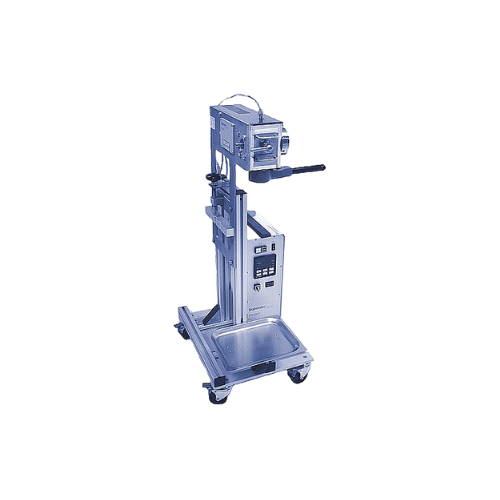

The Filtratest by Brabender is a specialized filtration system designed to ensure the purity of spinnable polymers and thermoplastic melts like PET, nylon, and polypropylene. Utilizing a fine-meshed filter disc, it effectively catches and analyzes foreign particles in polymer melts, crucial for maintaining material integrity. Designed for continuous operation, it employs pressure transducers to monitor particle deposition, facilitating precise quality control. Ideal for chemical producers, polymer manufacturers, and research institutions, it integrates smoothly into laboratory and processing environments. The system supports efficient filtration with quick sieve changes, optimized for detailed analysis and contamination assessment.
Benefits
- Enhances material purity by efficiently filtering contaminants.
- Facilitates precise quality control through continuous monitoring of pressure changes.
- Integrates seamlessly into existing laboratory and processing setups, minimizing installation time.
- Reduces operational costs with quick-change sieve design.
- Supports diverse polymer analysis, enabling broader application scope.
- Applications
- Chemicals,Polymers,Elastomers,Thermoplastic melts,Spinnable polymers
- End products
- Polyethylene terephthalate fibers,Polycarbonate sheets,Thermoplastic elastomers,Polystyrene containers,Acrylonitrile butadiene styrene casings,Polypropylene films,Nylon yarns,Polyvinyl chloride pipes
- Steps before
- Emulsification,Pre-heating
- Steps after
- Analysis,Pressure measurement,Contamination quantification
- Input ingredients
- spinnable polymers,thermoplastic melts,PET,PA
- Output ingredients
- foreign particle concentrations,polymer contamination,pressure data
- Market info
- Brabender is renowned for producing high-quality, engineered-to-order lab equipment for material testing, particularly in food and plastics industries, specializing in precision instruments for measuring, preparation, and processing.
- Sieve change method
- Drawer system
- Pre-heating feature
- Integrated pre-heating
- Cycle time
- Short-time
- Extrusion procedure
- Continuous with bypass option
- Software compatibility
- Windows
- Sieve flushing option
- Sliding funnel combination
- Measurement method
- Pressure measurement using transducers
- Application
- Polymer contamination analysis
- Working mechanism
- Continuous extrusion
- Integrated steps
- Pre-heating of sieve
- Batch vs. continuous operation
- Inline Continuous
- Automation level
- Windows Software-Controlled
- Quick sieve change
- Drawer system
- Bypass option for melt flow
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Quick change of sieves
- Drawer system
- Integrated pre-heating
- Sieve package
- Compact operation
- Short-time cycle times
- Continuous extrusion procedure
- Bypass option of the melt flow
- Discharge method
- Sliding funnel combination
- Control Panel Type
- Comfortable Windows Software
- Sieve Change Mechanism
- Quick change with drawer system
- Integration Type
- Continuous extrusion procedure with bypass option
- Sieve Pre-heating
- Integrated pre-heating
- Funnel System
- Option
