Externally fed drum screen for wastewater treatment

Optimize your wastewater treatment with advanced drum screening technology, ensuring high flow rates and effective solid retention for cleaner, filtered effluent in industrial and municipal applications.

Screens and Separates Wastewater Solids Efficiently

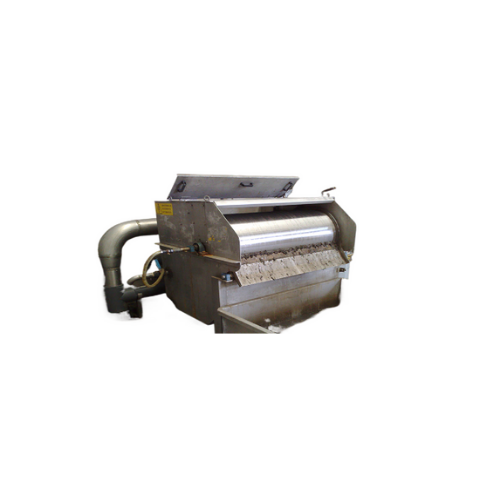

The SGR Externally Fed Drum Screens from WAMGROUP are engineered for seamless integration into wastewater treatment systems, designed to efficiently filter and separate solids from various water streams. These stainless steel drum screens feature wedge wire construction with trapezoidal slots, optimizing solid retention while allowing clear water to pass through. Suitable for industries such as food processing, municipal waste management, and plastics recycling, the SGR screens support applications including sludge treatment and effluent purification. With slot widths ranging from 0.25 to 2.50 mm, these screens handle high flow rates with minimal energy consumption, thanks to a gear reducer-driven rotation and a self-cleaning brass plate system. Engineered for durability and corrosion resistance, the screens are available in 304L and 316L stainless steel, ensuring long-lasting performance in harsh environments. The design allows for easy installation in restricted spaces and comes with optional customization for specific process requirements, including alternative screen types and advanced automation options.

Benefits

  • Enhances processing efficiency with continuous operation and self-cleaning technology.
  • Minimizes footprint with a compact design, ideal for constrained installation spaces.
  • Lowers maintenance costs with a robust stainless steel construction and durable components.
  • Provides fine filtration options, optimizing for specific industry needs and reducing waste load.
  • Promotes eco-friendly operation with reduced energy consumption and effective water treatment.

General


Applications
Sewage,Food processing waste water,Industrial solid waste,Sludge treatment,Municipal waste water,Fruit processing,Starch processing,Clean water treatment,Process water,Pulp processing,Plastics recycling,Paper processing,Animal by-products,Livestock waste water,Abattoirs,Dyeing works,Vegetable processing,Beverage waste water
End products
Treated sewage water,Vegetable puree,Dyed textile,Processed pulp,Processed starch,Dewatered sludge,Beverage effluent,Cleansed food processing effluent,Recycled paper pulp,Treated municipal wastewater,Manure slurry,Pureed fruit extracts,Cleaned industrial solid byproducts,Recycled plastic pellets,Rendered animal by-products,Filtered water,Treated process water
Steps before
Primary Screening,Coarse Screening,Initial Wastewater Collection
Steps after
Further Filtration,Sludge Treatment,Water Discharge,Clarification
Input ingredients
sewage,industrial waste water,municipal waste water,process water,solids,sludge
Output ingredients
clean water,retained solids,discharged solids
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Slot width
0.25 ~ 2.50 mm
Filter type
Wedge wire screen
Material
304 L / 316 L Stainless Steel
Flow Rate
High
Automation
Mobile washing system with high pressure nozzle
Drum size
Not specified
Cleaning method
High pressure nozzle
Energy consumption
Low
Installation Type
Compact design,fit in narrow spaces
Control panel
Available
Motor protection
Alternative degree available

Operating Characteristics


Automation level
Manual / PLC / SCADA
Cleaning method
Mobile washing system / High pressure nozzle
Batch vs. continuous operation
Continuous
Energy efficiency
Low energy consumption
Self-cleaning
Yes
Compact design
Easy to install in narrow spaces

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact design
Easy to install in narrow spaces
Drum size
Defined by flow rate and application needs

Custom Options


Slot width
0.25 ~ 2.50 mm
Screen type
Wedge wire
Screen material
304 L / 316 L SS
Control panel
Alternative voltage and frequency
Motor protection
Alternative degree of motor protection
Mobile drum washing system
High pressure water pre-arrangement
Cleaning blade
Teflon
