Explosion-proof external electric motovibrators for oil & gas industry
Ensure safety and efficiency in hazardous environments with explosion-proof motovibrators, designed to facilitate optimal material flow, dewatering, and recovery processes in oil and gas operations.
Enhances Material Flow and Fluid Recovery

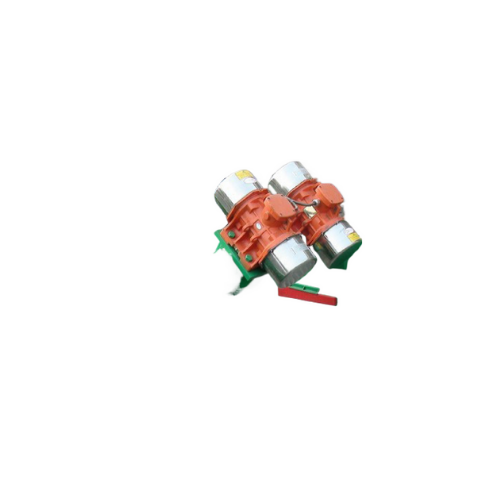

The MVE-D from WAMGROUP is an explosion-proof external electric motovibrator, engineered for critical safety in hazardous locations such as oil and gas extraction sites. Its design features a rugged FMEA-optimized cast casing with eccentric weights that generate centrifugal forces ranging from 800 to 5,500 kg. This motovibrator is invaluable for operations involving material discharge, dewatering, and fluid recovery in environments where flammable dusts or gases are present. It boasts ATEX Ex II 2GD and ETL Class I, Division 1 certifications and adapts seamlessly to existing equipment in shale shakers and other vibrating machines used in oil, gas, and recycling industries. The MVE-D supports continuous, high-speed manual operations with an option for customizing pole numbers to fit diverse electric specifications worldwide. Constructed with premium materials such as vacuum-impregnated windings and stainless steel mass covers, it provides reliable performance and exceptional durability, while its multi-voltage compatibility ensures global usability.
Benefits
- Ensures safety in explosive environments with certified explosion-proof design.
- Enhances operational efficiency by optimizing material flow and fluid recovery.
- Adapts to global standards with multi-voltage compatibility and customizable specifications.
- Resistant to wear and tear with robust FMEA-designed construction.
- Minimizes energy consumption through strategic weight distribution and efficient motor operation.
- Applications
- Drilling fluid recovery,Sand dewatering,Heavy industries,Oil,Gas extraction,Recycling
- End products
- Recycled aggregates,Fracking sand,Natural gas,Drilling mud,Shale gas,Crude oil,Recycled plastics
- Steps before
- Oil and gas extraction,Drilling,Material loading
- Steps after
- Material discharge,Screening,Dewatering
- Input ingredients
- drilling fluid,sand,potentially flammable dusts,gases
- Output ingredients
- centrifugal force,fluid recovery,material discharge
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Centrifugal force
- 800–5,500 kg
- Poles
- 2,4,6,8
- Certification
- ATEX ExII2GD,ETL Class I Division 1,Class II Division 1,IECEx
- Motor Design
- Sturdy FMEA-designed cast casing
- Voltage Options
- Multiple voltages available
- Insulation Class
- Class F
- Material Cover
- Stainless steel mass covers
- Force Type
- Centrifugal Force
- Force Range
- 800 to 5,500 kg
- Poles
- 2,4,6,or 8 poles
- Movement Type
- Circular / Linear
- Environment
- Hazardous,Explosion-Proof
- Application
- Oil,Gas,Fracking Operations
- Explosion-proof compatibility
- ATEX ExII2GD,ETL Class I,Division 1,Class II,Division 1
- Temperature resistance
- High temperature applications
- Corrosive resistance (e.g. acids)
- Stainless steel mass covers
- Industry application
- Oil,Gas,Recycling
- Machine compatibility
- Shale shakers,vibrating machines
- ATEX certification
- Ex II 2 GD
- ETL certification
- Class I,Division 1 and Class II,Division 1
- Footprint
- Matching OEM standards
- Casing Material
- Cast casing
- Poles
- 2,4,6,8 poles
- Centrifugal force
- 800 ~ 5,500 kg
- Insulation Class
- Class F
- Mass Cover Material
- Stainless steel
- Number of poles
- 2,4,6,8 poles
