Entry-level metal detector for food production

Ensure your food and beverage products remain contaminant-free with a cost-effective metal detection solution, designed for seamless integration into high-speed production lines, enhancing quality control and securing consumer safety.

Detects Metal Contaminants in Food Production

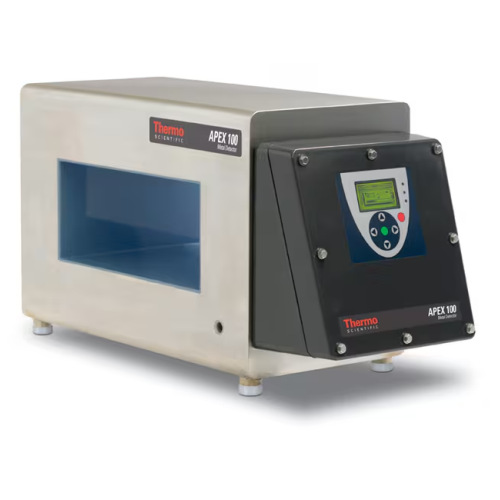

The APEX 100 Entry Level Metal Detector by Thermo Scientific is engineered to secure your food and beverage production lines against metal contamination. Utilizing robust magnetic and electronic systems, it ensures precise metal detection, akin to the capabilities of the APEX 500 model. Ideal for applications such as snack bars, canned soups, and meat packaging, it operates efficiently across a wide range of products, from solids to liquids. With a processing speed up to 1000 m/min, it seamlessly integrates into continuous, high-speed operations. The unit is housed in a straight-lined, stainless steel 304 case with an ABS plastic front panel, providing durability and corrosion resistance. This detector meets cCSAus, CE, and ATEX zone 22 standards, ensuring compliance with industry regulations. Optional ModBus serial or Ethernet modules allow for seamless PLC integration and remote monitoring, enhancing operational oversight and control.

Benefits

  • Enhances product safety by reliably detecting metal contaminants.
  • Facilitates high-speed processing to maintain production efficiency.
  • Compliance with industry standards ensures regulatory adherence.
  • Durable construction minimizes maintenance and replacement costs.
  • Seamlessly integrates into existing systems with remote monitoring options.

General


Applications
Food,Beverages,Other products
End products
Canned soups,Bottled water,Frozen vegetables,Snack bars,Packaged nuts,Meat packaging,Cereal boxes,Soft drinks,Bottled juices,Dairy products
Steps before
Mixing,Formulation,Sizing,Blending
Steps after
Packaging,Labeling,Quality Inspection,Distribution
Input ingredients
food,beverages,other products
Output ingredients
detected metal contaminants,rejected items
Market info
Thermo Fisher Scientific is renowned for providing innovative scientific instruments, laboratory equipment, and engineered-to-order solutions across various industries, esteemed for their high-quality products and expertise in life sciences, pharmaceuticals, and biotechnology sectors.

Technical Specifications


Sensitivity
Equal to Thermo Scientific™ DSP3 and Thermo Scientific™ Metal Eliminator detectors
Speed
0.5 m/min (1.7 ft/min) to 1000 m/min (3300 ft/min)
Electrical Requirements
85/260 V AC single phase plus earth ground
47/65 Hz,100 watts max
Operating Temperature
Ambient Temperature -10° to 40°C (14° to 104°F)
Product Temperature in Aperture
-10° to 55°C (14° to 131°F)
Maximum Washdown Temperature
80°C (176°F)
Input Types
6 Inputs - Active 12VDC and auxiliary supply for input sensors,NPN sinking
Output Types
6 Relay outputs
Relays
250 volt AC 2 amp max. 50 volt DC 1 amp max
Aperture Size
Width
Communications
Optional ModBus serial or Ethernet modules
Relative Humidity
20 to 80% non-condensing
IP Rating
IP69K

Operating Characteristics


Sensitivity Level
Equal to Thermo Scientific™ DSP3 and Metal Eliminator
Frequency
Dual frequency for improved application flexibility
Aperture Size
Width
Speed Range
0.5 m/min to 1000 m/min
Operating Temperature
-10° to 40°C
Product Temperature
-10° to 55°C
Maximum Washdown Temperature
80°C
Relative Humidity
20 to 80% non-condensing
Automation Level
Remote monitoring via Modbus™
Control Panel
Solid-state,touch operation control panel

Material Compatibility


Stainless steel usage
Stainless steel 304

Physical Characteristics


Control panel type
Solid-state touch operation
Construction Material
Stainless steel 304 case,ABS plastic front panel
Aperture Size
Width

Custom Options


Control panel type
Solid-state,touch operation control with icon-driven interface
Integration possibilities
Optional ModBus serial or Ethernet modules
Compact design
Compact and robust mechanical design for easy installation
Material construction
Stainless steel 304 case and ABS plastic front panel
Multi-language support
English,Spanish,French,German,Italian,Chinese,Czech,Russian,Polish,Thai,Korean,Brazilian Portuguese
