Empty can inspection system for food industry

Ensure seamless production flow by detecting faulty cans before filling, preventing blockages, and safeguarding product safety with precise top-down inspections for maximum line efficiency.

Inspects and Rejects Defective Empty Cans

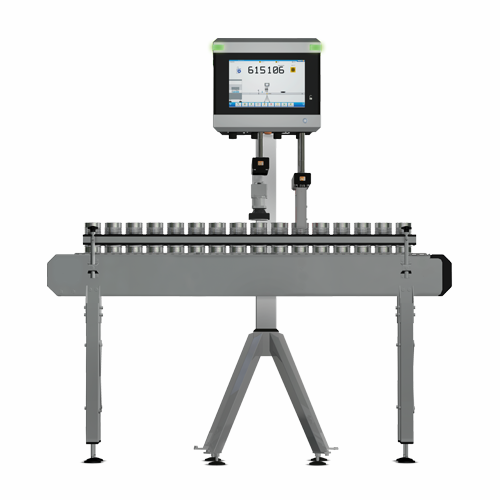

The HEUFT canLine II empty can inspection system from HEUFT SYSTEMTECHNIK GMBH is designed to optimize your beverage, food, and pharmaceutical production lines by detecting and rejecting faulty empty cans with precision. Utilizing a top-down color sensor camera, it inspects each can for deformations, contaminants, and misalignments before they enter the filling process. Capable of inspecting up to 1,200 cans per minute, it ensures line efficiency without compromising product quality. The in-house developed HEUFTSPECTRUMII platform provides full automation, including automatic format changes and adaptive LED illumination, enhancing operational reliability. This system is especially beneficial for ensuring the safety and integrity of soda, soup, and pharmaceutical cans, as well as other canned goods. Made with robust materials, the HEUFT canLine II excels in rigorous, continuous, and high-speed manufacturing environments, offering seamless integration into existing lines and scalability through modular upgrades.

Benefits

  • Enhances production efficiency by proactively removing defective cans before filling.
  • Minimizes operational downtime with high-speed inspections of up to 1,200 cans per minute.
  • Integrates seamlessly into existing production lines with automated format changes.
  • Ensures product safety by preventing potential contamination in filled cans.
  • Supports sustainable operations by reducing waste and energy usage through precise detection and rejection systems.

General


Applications
Food,Beverage,Pharma,Empty containers,Packaged foods,Canned goods,Filled containers
End products
Energy drink cans,Vegetable cans,Soda cans,Ready-to-eat meal cans,Beer cans,Soup cans,Juice cans,Fruit cans,Pharmaceutical cans,Pet food cans
Steps before
Manufacturing of empty cans,Transporting empty cans to inspection line
Steps after
Filling of cans,Sealing of cans,Quality control,Packing of finished products
Input ingredients
empty tin cans,empty aluminum cans
Output ingredients
faulty cans,non-faulty cans,inspected cans,rejected cans
Market info
HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.

Technical Specifications


Inspection Speed
Up to 1,200 empty cans per minute
Camera Type
Colour sensor camera with integrated LED illumination
Detection Accuracy
High precision ovality and defect detection
Automation
Full automation with HEUFTSPECTRUM II
Inspection Coverage
Neck finish,flange,interior,and base areas
Line Length Compatibility
Compact design for space saving
Type Changeover
Fully automatic with adaptive illumination
Modular Design
Easy upgrading and retrofitting
Optional Additional Inspection
Longitudinal seam inspection at up to 800 cans per minute

Operating Characteristics


Automation level
Highly Automated
Batch vs. continuous operation
Inline Continuous
Changeover time
Quick,automated
Cleaning method
Non-contact
Energy efficiency
Optimized for high throughput

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Particularly compact dimensions
Modular design
Easy upgrading and retrofitting

Custom Options


Control panel type
HEUFTSPECTRUMII control unit
HMI/Interface
HEUFTNaVi audiovisual guidance
Integration possibilities
Network interfaces (Gigabit Ethernet and TCP/IP)
Modular design
Easy upgrading and retrofitting
Adaptive illumination
LED integrated in sensor camera
Automation level
Fully automatic type change
