Effective pasteurization system for beverage industry
Maximize beverage safety with efficient heating and cooling processes, ensuring flexible adaptation to evolving production demands and energy conservation.
Pasteurizes and Heats Beverages for Safe Storage

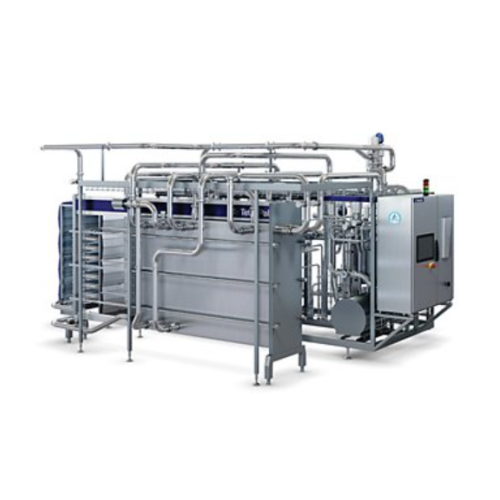

The Tetra Pak® Pasteurizer BC is an innovative solution designed for beverage manufacturers looking to streamline their production processes while ensuring product quality and safety. This unit is equipped with a plate heat exchanger to effectively pasteurize and heat beverages for aseptic and hot-filled applications. It is particularly suited for processing fruit juices, still drinks, and nectars, facilitating safe ambient temperature storage. The unit offers flexible capacity options, ranging from 3,000 to 30,000 liters per hour, to accommodate varying production scales.
The system is highly automated, featuring integrated PLC with a user-friendly operator panel for process monitoring and control. It boasts energy efficiency, achieving up to 20% energy savings through optimized temperature control, while a unique automatic hibernation feature minimizes energy and water use during downtime. Additionally, booster pumps and a divert system ensure consistent pasteurization, with pressure differential and temperature monitoring maintaining both product integrity and safety.
Constructed with corrosion-resistant materials, the pasteurizer offers low maintenance, supported by a CIP system for seamless cleaning. It is also upgradable to adapt to future production changes and is backed by comprehensive engineering support for customized configurations.
Benefits
- Enables product versatility with capacity ranges from 3,000 to 30,000 l/h.
- Ensures food safety with reliable pressure and temperature monitoring.
- Cuts operational costs with 20% energy savings through optimized temperature control.
- Minimizes downtime with automatic hibernation and quick ramp-up times.
- Reduces product loss by over 50% with efficient balance tank design.
- Applications
- Beverages,Still drinks,Hot-filled beverages,Aseptic beverages,Nectars,Fruit juices
- End products
- Lemonade,Hot-filled cranberry juice,Apple juice,Strawberry banana smoothie,Orange juice,Iced tea,Hot-filled herbal tea,Aseptic apple juice,Fruit punch,Mango nectar,Aseptic orange juice
- Steps before
- Preparation,Mixing,Extraction
- Steps after
- Filling,Cooling,Aseptic Packaging,Quality Control
- Input ingredients
- fruit juices,still drinks,nectars,unpasteurized beverage products
- Output ingredients
- pasteurized fruit juices,pasteurized still drinks,pasteurized nectars
- Market info
- Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.
- Capacity
- 3,000 – 30,000 l/h
- Automation
- 21.5” touch screen panel
- Pressure differential
- Monitored by transmitters
- Energy savings
- Up to 19 – 20%
- Water savings
- Up to 5,500 l/h
- Pasteurization temperature
- Lower temperatures for beverages with pH under 4.2
- Hibernation ramp-up/down time
- Approximately 2 minutes
- Working mechanism
- Plate heat exchanger
- Temperature treatment type
- Aseptic / Hot fill
- Pasteurization mode
- Continuous
- Automation level
- PLC controlled
- Energy consumption
- 19–20% energy savings
- Temperature monitoring
- Divert system
- Pressure control
- Automatic pressure differential
- Recirculation system
- Balance tank for recirculation
- Automatic hibernation
- Yes
- Product loss minimization
- Low-loss balance tank
- Capacity range
- 3,000–30,000 l/h
- Cooling system
- Eco cooling/deaerator
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact design
- Tank shape
- Plate heat exchanger
- Feed/discharge method
- Automatic divert system
- Control panel type
- 21.5" touch screen interface
- Design Type
- Aseptic or Hot Fill
- Heat Exchanger Type
- Plate Heat Exchanger
- Capacity Range
- 3,000 - 30,000 l/h
- Control Panel Type
- 21.5” Touch Screen Interface
- Automation Level
- Integrated Automation Software
- Energy Saving Feature
- Automatic Hibernation
- Recirculation System
- Divert System for Safety
- Pressure Monitoring
- Pressure Differential with Booster Pumps
- Water Circuit
- Deaerator with Eco Vacuum and Eco Cooling
