Double sigma arm spiral mixer for bakery applications

Effortlessly tackle high-capacity mixing and kneading with a robust double sigma arm spiral mixer, designed to meet the precision demands of complex bakery and confectionery recipes.

Mixes and Kneads Bakery and Confectionery Products

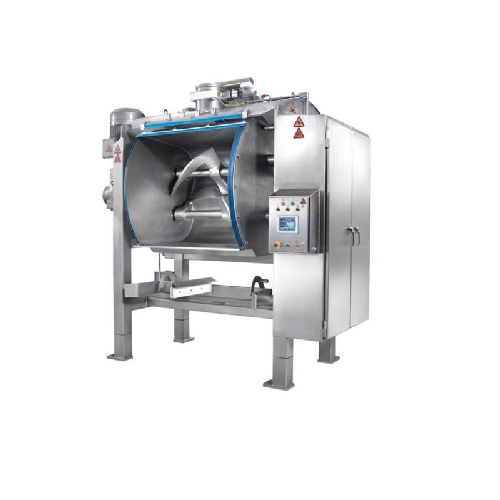

The Double Sigma Arm Spiral Mixer from Shaffer Mixers & Bakery Equipment efficiently combines mixing and kneading processes for bakery and confectionery production. Designed to handle batch operations, it supports various product types, from solid to slurry, ensuring versatility in food processing. With a mixing capacity ranging from 600 to over 1,600 lbs, this mixer is ideal for applications such as pound cakes, chocolate creams, and pretzels. Its hydraulic bowl tilt and touch screen PLC controls enhance ease of use and integration within production lines. Constructed from sanitary stainless steel, it offers durability and compliance with BISSC and ANSI standards, while optional load cells and Clean-In-Place systems streamline maintenance and operational accuracy.

Benefits

  • Enhances production efficiency with its high-capacity mixing and kneading capabilities.
  • Simplifies user operation through intuitive touch screen and PLC control.
  • Reduces maintenance time and contamination risk via optional Clean-In-Place system.
  • Ensures product consistency with precise batch processing for various end-products.
  • Provides durability and hygiene with stainless steel construction and compliance to industry standards.

General


Applications
Confectionery,Snack bars,Desserts,Bakery products,Pretzels,Icing,Pastry fillings
End products
Chocolate creams,Buttercream icing,Muffins,Wire-cut cookies,Salted pretzels,Caramel granola bars,Pound cake
Steps before
Ingredient Weighing,Pre-mixing,Temperature Control
Steps after
Dough Kneading,Fermentation,Baking,Cooling,Packaging
Input ingredients
flour,sugar,eggs,milk,butter
Output ingredients
cakes,muffins,confectionary creams,cookies,cream fillings,granola bars,health bars,icing,pretzels
Market info
Shaffer is known for designing and manufacturing industrial mixing equipment, primarily for the baking industry, including dough mixers and processing systems. They are recognized for their expertise in creating customized solutions that enhance efficiency and meet specific customer needs.

Technical Specifications


Agitator Type
Double Sigma Arm
Batch Capacity
600 to 1,600 lbs,More than 1,600 lbs
Bowl Volume
Usable
Bowl Volume
Rated
Frame Type Options
Enclosed Frame,Hybrid Open Frame
Hydraulic Bowl Tilt
Forward or two-way tilt
Capacity
900 lb / 408 kg to 5,400 lb / 2,449 kg
Automation
Touch screen operator interface,PLC controls
Cooling Option
Refrigeration Jacket
Control Panel
Push buttons with universal labels
Metal Detectable,Positive Pressure Bowl Seals
NEMA 4X water-tight enclosures
Electrical,Operator Interface and PLC Packages
Custom

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
Touch screen operator interface,PLC controls
Cleaning method
Clean-In-Place (CIP)
Changeover time
Efficient with enclosure and sanitary design

Material Compatibility


Cleanability
Easy to clean - sanitary design
Corrosive resistance (e.g. acids)
Stainless steel construction
Density/particle size
Various (based on application like cakes,cookies)

Product type Characteristics


Ideal for Products
Cakes,Muffins,Confectionary Creams,Cookies,Wire Cut,Cream Fillings,Granola,Health Bars,Icing,Pretzels

Physical Characteristics


Control panel type
Touch screen,PLC controls,push buttons
Compact footprint
Yes
Discharge method
Hydraulic Bowl Tilt
Frame Type
Enclosed Frame,Hybrid Open Frame
Machine Material
Stainless Steel
Agitator Type
Double Sigma Arm

Custom Options


Frame Type
Enclosed Frame,Hybrid Open Frame
Hydraulic Bowl Tilt
Forward or two-way tilt
Control Panel Type
Touch screen operator interface,PLC controls,and push buttons with universal labels
Optional Features
Refrigeration Jacket,Custom canopy inlet configuration,Custom electrical,operator Interface and PLC Packages
Enclosure Type
NEMA 4X water-tight enclosures
Metal Detectable Seals
Positive Pressure Bowl Seals
