Double sheet kneader sheeter for fresh pasta processing

Efficiently transform dough into consistent sheets with our machine, ensuring uniform thickness for precise product shaping, essential for high-speed, continuous production lines in food processing.

Kneads and Sheets Dough for Consistent Production

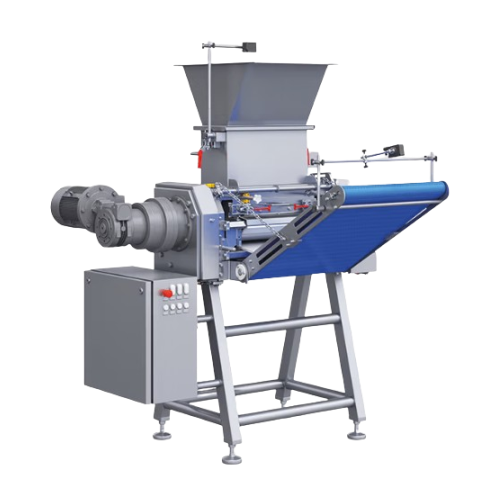

The SPTW Double Sheet Kneader Sheeter from GEA is engineered to enhance efficiency in your pasta and snack production lines. Its unique double shoulder structure ensures sanitation by keeping mechanical parts away from the product contact area, while robust stainless steel construction guarantees durability. Ideal for producing lasagna, ravioli, croissants, and more, it operates through simultaneous kneading and sheeting, employing a series of three lobe-profiled rolls and smooth sheeting rolls. Processing between 150 to 600 kg/h and forming sheets widths from 300 to 540 mm, this machine is perfect for continuous, high-speed operations. All components are designed for seamless integration into pre-existing lines and feature watertight magnetic safety sensors for enhanced operation safety. The easy-clean, tilt-able hopper design, and CIP readiness ensure minimal downtime for cleaning and maintenance, while the absence of pinions and chains reduces mechanical wear and energy consumption. Fully customizable, it integrates into your production needs with precision engineering support, making it a fundamental tool for your food processing capabilities.

Benefits

  • Ensures product purity by preventing dough contact with mechanical parts.
  • Streamlines production with simultaneous kneading and sheeting, enhancing operational efficiency.
  • Reduces energy costs with integrated drive system eliminating pinions and chains.
  • Minimizes cleaning downtime through easy access and CIP-ready components.
  • Increases versatility with capacity to produce various dough-based products.

General


Applications
Snacks,Breakfast cereals,Fresh pasta,Pasta
End products
Rolled biscuits,Pizza base sheets,Croissant dough sheets,Lasagna sheets,Dumpling skins,Egg noodles,Flatbreads,Tortellini sheets,Ravioli sheets,Puff pastry sheets
Steps before
Mixing,Dough Preparation
Steps after
Pasta Cutting,Packaging
Input ingredients
dough,mixture
Output ingredients
7mm single sheet,uniform thickness sheet,dough sheets
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity
150-600 kg/h
Sheet width
300-540 mm
Sheet thickness
7 mm (single sheet)
Material
Stainless steel
Rolls configuration
Double sheet kneader sheeter
Kneading units
Two units,each with three rolls
Calibrating units
Two units,each with two rolls
Motor
Single motor for kneading and sheeting rolls
Safety features
Watertight magnetic safety sensors
Cleaning
Mixture receiving hopper can be tilted
Temperature consistency
Inlet and outlet temperatures are the same

Operating Characteristics


Working mechanism
Double sheet kneading and sheeting
Integrated steps
Kneading and calibrating
Automation level
PLC-controlled
Cleaning method
Manual access for easy cleaning
Batch vs. continuous operation
Continuous
Energy efficiency
Single motor for kneading and sheeting
Contact with mechanical parts
None with product
Rolls accessibility
Easy access for cleaning

Material Compatibility


Corrosion resistance
Stainless steel
Cleanability
Stainless steel with rounded corners
Food safety compliance
Food-grade stainless steel
Smooth surface finish
Polished stainless steel
Low residue accumulation
Hopper with rounded corners

Physical Characteristics


Sheet width
300-540 mm
Material
Stainless steel
Structure
Double shoulder
Rolls material
Stainless steel
Hopper design
Tilted,rounded corners
Protection shells
Stainless steel,magnetic safety sensors

Custom Options


Hopper adjustment
Tilt for easy access
Safety features
Watertight magnetic safety sensors
Material selection
Stainless steel
