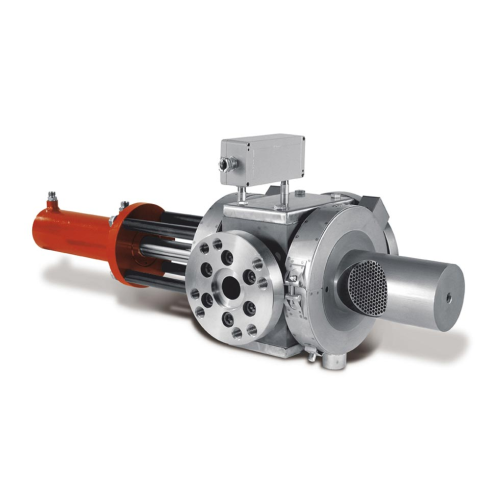

Discontinuous screen changer for low viscosity melts

Optimize your filtration process with a discontinuous screen changer designed to handle low viscosity polymer melts, ensuring seamless material changes and minimal pressure buildup for enhanced throughput.

Filters and Separates Polymers During Production

The Screen Changer ESD from ECON is a versatile discontinuous filtration solution designed for polymer manufacturers and plastic processing companies. This equipment operates by hydraulically moving the piston to change screens when the machine is stopped, essential for filtering melts with low viscosities like PET and PA. Its unique design offers air cooling at the piston ends, ensuring leak-free operation. With a flow-optimized melt channel, the ESD maximizes throughput up to 2,500 kg/hr while maintaining minimal pressure build-up, protecting both the material and screens during processing. Ideal for applications including plastic bottle production, synthetic fibers, and automotive parts, the ESD integrates into existing production lines to facilitate efficient material purification. Built with approximately 65% effective screen area, this system reduces downtime and enhances operational efficiency in batch or manual operations. Its robust construction suits industries such as plastics, chemicals, packaging, and recycling.

Benefits

  • Ensures efficient material purity with flow-optimized design reducing pressure build-up.
  • Minimizes production interruptions with easy screen changes during stoppages.
  • Handles diverse polymer applications with capacity up to 2,500 kg/hr.
  • Leak-free operation for low viscosity melts, reducing contamination risks.
  • Enhances operational flexibility across plastics, chemical, and recycling industries.

General


Applications
Polymers,Polyamides,Pet,Synthetic resins,Pa,Plastics
End products
Plastic bottles,Nylon threads,Engineering plastics,Textile fibers,Automotive parts,Industrial components,Consumer goods,Synthetic fibers,Molded plastic products,Packaging films
Steps before
Purification,Material Preparation
Steps after
Melt Filtration,Material Cooling,Pelletizing
Input ingredients
melts,low viscosity materials,PET,PA
Output ingredients
screened material,pellets
Market info

Technical Specifications


Effective Screen Area
Approx. 65%
Throughput
Few kg/hr up to 2,500 kg/hr
Pressure Build-Up
Extremely Low
Flow Design
Flow-optimized
Viscosity Compatibility
Very Low Viscosity (e.g.,PET or PA)

Operating Characteristics


Screen change mechanism
Discontinuous
Flow optimization
Low pressure build-up
Screen change operation
Hydraulic
Viscosity compatibility
Low viscosity (e.g.,PET or PA)
Cooling method at pistons
Air cooled
Operation mode
Leak-free for low viscosity
Throughput range
A few kg/hr to 2,500 kg/hr

Material Compatibility


Viscosity Compatibility
Low viscosity (e.g. PET,PA)
Thermal Compatibility
ECONthermo sealer to prevent thermal leakage
Pressure Compatibility
Low pressure build-up


ISO Certification
ISO 9001

Physical Characteristics


Screen area
Approx. 65% effective screen area
Design
Flow-optimized melt channels
Pressure build-up
Extremely low pressure build-up
Cooling option
Air cooling
Material change capability
No dead spots for faster material changes

Custom Options


Cooling option
Air cooling at the end of pistons
Design
Flow-optimized design of melt channels
