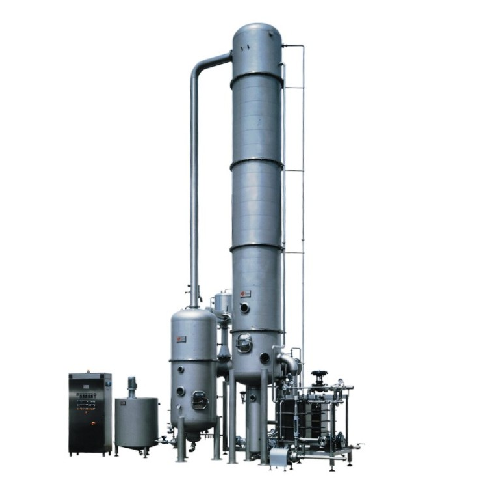

Desulphurizer for grape juice

Eliminate sulfur dioxide vapor release while preserving juice concentration, achieving purity levels below 10 ppm—ideal for creating natural, sulfur-free grape juices and wines with minimal steam consumption.

Neutralizes and Re-injects SO2 Vapors

The Desulphurizer for grape juice from Padovan is designed to address the critical needs of wine producers and juice manufacturers in managing sulfur dioxide emissions. It utilizes a unique neutralization process with lime or caustic that prevents SO2 release into the atmosphere. This equipment reinjects neutralized vapors back into the product, maintaining juice quality and concentration. Tailored for applications in grape juice concentrate, organic natural juices, and low-sulfur wine, it offers high automation with automatic flow rate regulation, ensuring continuous and efficient operation.

With its mechanical compressor version, the desulphurizer achieves very low steam consumption, enhancing energy efficiency. The equipment can achieve sulfate levels as low as 10 ppm, making it ideal for producing natural juices. Constructed from materials offering excellent corrosion resistance, the device integrates seamlessly into existing processing lines, ensuring minimal downtime and easy maintenance. Its advanced automation capabilities simplify operations, making it a reliable option for large-scale beverage processing facilities.

Benefits

  • Ensures environmental compliance by preventing SO2 emissions into the atmosphere.
  • Enhances juice quality while maintaining low sulfur content.
  • Optimizes energy efficiency with low steam consumption design.
  • Streamlines operations with high automation, reducing labor costs.
  • Integrates smoothly into existing production lines with minimal disruption.

General


Applications
Natural juices,Grape juice,Wine
End products
Sulfur-free grape juice,Organic natural juices,Low-sulfur wine,Grape juice concentrate
Steps before
Crushing,Must clarification,Juice extraction
Steps after
Sterilization,Concentration,Filtration,Bottling
Input ingredients
grape juice,SO2 vapors
Output ingredients
neutralized vapors,natural juices
Market info
Padovan (Omnia Technologies) is known for engineering advanced industrial filtration and process equipment, particularly in the beverage, chemical, and food industries, with a reputation for innovation, quality, and tailored solutions in engineered-to-order equipment.

Technical Specifications


SO2 Vapors Neutralization
Lime or Caustic
SO2 Emission
No Release into Atmosphere
Vapor Re-injection
Into Product
Steam Contact
No Direct Contact with Juice
SO2 Concentration
Less than 10 ppm
Automation Degree
High
Steam Consumption
Very Low with Mechanical Compressor Version
Flowrate Regulation
Automatic

Operating Characteristics


Neutralization method
Lime or caustic
Vapor re-injection
Integrated
Contact method
No direct contact between steam and juice
SO2 emission control
No SO2 release into atmosphere
Automation level
High automation degree
Flowrate regulation
Automatic
Steam consumption
Very low with mechanical compressor
Operation type
Continuous (implied by context)

Material Compatibility


Corrosive resistance (e.g. acids)
Yes
Biological compatibility
Yes
Cleanability
CIP compatible
Abrasion resistance
High

Product type Characteristics


SO2 vapors neutralization
Lime or caustic

Physical Characteristics


Footprint
Compact
Tank size
Customized
Tank shape
Designed for low steam consumption
Feed/discharge method
Automatic flowrate regulation

Custom Options


Automation level
High automation degree
Flowrate regulation
Automatic flowrate regulation
Customization on vapour neutralization
Neutralization with lime or caustic
Mechanical compression
Very low steam consumption with mechanical compressor version
