Degassing system for ground coffee

Optimize your coffee production with a robust degassing solution designed to preserve flavor, prevent spoilage, and ensure seamless integration into your continuous and high-speed processing line.

Controls Degassing, Grinding, and Packing Operations

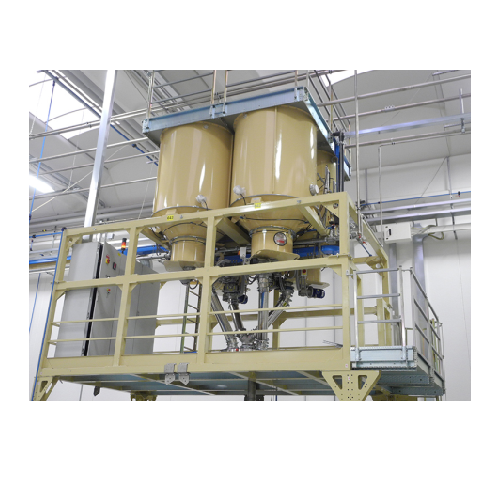

The Degassing and Grinding System from Scolari Engineering offers a comprehensive solution for coffee roasters and producers looking to optimize their processing line. This fully automated system utilizes a patented tracking and control system to ensure precise degassing of ground coffee, enhancing flavor retention for espresso and moka blends. Featuring a sealed design with nitrogen injection for minimized oxidation, it streamlines the transition from grinding to packing, with a capacity of supporting multiple silos filled from a single grinding mill. Integration includes chain, vacuum, and dense phase conveyors, facilitating high-speed operation ideal for continuous production environments. The system’s modular coffee grinder allows users to customize the granulometric spectrum, preserving aroma while optimizing thermal exchange using inert gases. The resilient construction with materials like centrifuged cast iron ensures longevity and resistance to wear, backed by an intelligent control panel for real-time adjustments and low maintenance requirements.

Benefits

  • Enhances coffee aroma and flavor preservation through precise degassing and nitrogen injection.
  • Minimizes maintenance costs with durable construction and automated control systems.
  • Increases production efficiency with high-capacity grinding and silo systems.
  • Supports continuous operation with integrated conveyors for seamless processing flow.
  • Customizable granulometric settings cater to diverse coffee blend requirements.

General


Applications
Ground coffee,Roasted coffee
End products
Espresso,Vacuum-packed ground coffee,Moka coffee
Steps before
Grinding
Steps after
Packing
Input ingredients
green coffee,ground coffee,coffee beans,nitrogen,carbon dioxide
Output ingredients
roasted coffee,ground coffee,degassed coffee,vacuum packed coffee
Market info
Scolari Engineering is known for designing and manufacturing custom-engineered drying systems and equipment, particularly for the food and agricultural industries, leveraging innovative technology and a strong reputation for quality and reliability.

Technical Specifications


Capacity
ESPRESSO
Compressed Air
Pressure 6 bar
Automation
Computerised grinding regulation
Grinding Size
Granulometric spectrum customizable
Machine Dimensions
Length 2600 mm,Width 1600 mm,Height 3200 mm
Weight
5000 Kg
Roller Material
Very hard centrifuged cast iron,Ø 250 mm
Cooling System
External cooler with thermostat
Feeder
Variable speed and thickness
Density Adjustment
Servo-motor controlled
Silo Capacity
1 or 2 tons
Conveyor Type
Chain Conveyor,Vacuum Conveyor,Dense phase Conveyor

Operating Characteristics


Working Mechanism
Sealed degassing system with inert gas
Integrated Steps
Grinding,Degassing,Conveying,Packaging
Batch vs. Continuous Operation
Inline Continuous
Automation Level
Totally computerized grinding regulation
Changeover Time
Minimal due to fully automated system
Cleaning Method
Minimal Maintenance
Density Control
Servo-motor driven compactor adjustment

Material Compatibility


Abrasion resistance
High
Cleanability
Yes
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Grinding regulation
Totally computerised

Physical Characteristics


Machine footprint
Length 2600 mm,Width 1600 mm,Height 3200 mm
Machine weight
5000 Kg
Control panel type
On-board control panel
Modular structure
2 individual modular levels (+1 optional)
Roller dimensions
Ø 250 mm,depth 12 mm
Feeder type
Variable speed and thickness
External panels
Sound-proofing material
Compactor type
Independent type with stainless steel cooling room

Custom Options


Grinding Granulometry
Customizable based on customer requirements
Control Panel
SYNOPTIC Liquid crystal display
Conveyor Type
Chain,Vacuum,Dense Phase Conveyors
Gas Type for Degassing
Nitrogen or Carbon Dioxide
Compactor Density Adjustment
Adjustable using a servo-motor
