Continuous-path arc welding robot

Optimize your production line with high-speed, precision arc welding using our advanced hollow-shaft robotic arm, designed for seamless integration and efficient space utilization.

Performs Precision Welding and Flexible Automation

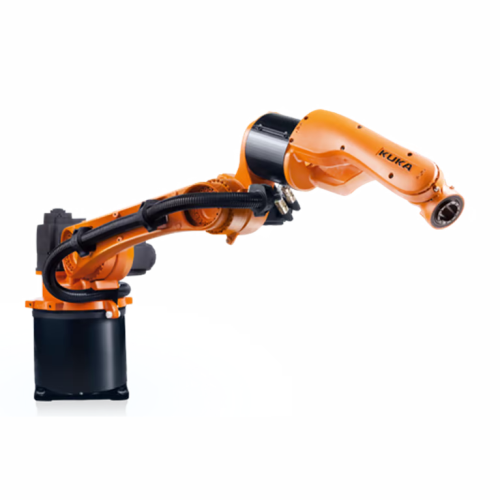

The KR CYBERTECH nano ARC from KUKA AG exemplifies precision in arc welding and flexible automation. Designed for continuous-path operations, it excels in producing automotive components like car body panels and electronics circuit boards. With load capacities of 6-8 kg and reach options up to 1843 mm, these hollow-shaft robots offer repeatability of 0.04 mm, ensuring exceptional accuracy.

Engineered for versatile integration within your production line, the robots’ compact design allows for any installation—floor, wall, or ceiling—adapting to your spatial constraints. Enhanced by KUKA’s latest controller technology, the robot provides adaptable performance through digital Motion Modes, optimizing precision and speed based on your needs. The long service life, coupled with maintenance-free axes 4-6, ensures reduced total cost of ownership (TCO).

Ideal for automotive, electronics, and metal industries, the KR CYBERTECH nano ARC supports operations like welding, cutting, applying, and machine loading. Its flexibility and energy efficiency make it a valuable addition to processing departments aiming for cost-effective automation without sacrificing performance.

Benefits

  • Enhances operational efficiency with precise, high-speed arc welding capabilities.
  • Offers flexibility in installation, accommodating varied production environments.
  • Minimizes total cost of ownership through maintenance-free axes and long service life.
  • Adapts performance for precision or speed via digital Motion Modes.
  • Integrates seamlessly into space-constrained setups with a compact design.

General


Applications
Industrial equipment,Construction materials,Automotive components,Machine parts,Consumer goods,Electronics components,Metal products
End products
Structural steel parts,Household appliances,Building joints,Electronic circuit boards,Metal beams,Gear components,Car body panels
Steps before
Material handling,Workpiece positioning,System setup
Steps after
Quality inspection,Finishing,Component assembly
Input ingredients
arc welding materials,adhesives,sealants,materials for laser cutting,electronic components
Output ingredients
welded parts,bonded materials,cut components,assembled electronic parts
Market info
KUKA is renowned for its expertise in industrial robotics and automation solutions, specializing in providing advanced robotic systems for manufacturing, automotive, electronics, and logistics industries, with a reputation for innovation and quality in engineered-to-order equipment.

Technical Specifications


Load capacity
6-8 kg
Maximum reach
1421 - 1843 mm
Repeatability
0.04 mm
Mounting positions
Angle,Ceiling,Floor,Wall
Protection class
IP 54,IP 65
Controller
KR C4,KR C5
Construction type
Hollow Wrist
Installation flexibility
Floor,Wall,Ceiling,Angled
Path accuracy
Extremely high
Performance adaptation
Digital Motion Modes
Extremely precise motion
Yes
Compatibility with compact cells
Yes
Service life
Long
Maintenance
Maintenance-free axes 4-6

Operating Characteristics


Mounting flexibility
Floor,Wall,Ceiling,Angle
Path accuracy
High precision continuous-path motion
Payload capacity
6-8 kg
Repeatability
±0.04 mm
Compact design
Streamlined,minimal footprint
Integration with controllers
KR C4,KR C5
Hollow-shaft wrist capability
50 mm
Protection class
IP 54,IP 65
Service life
Long,maintenance-free axes 4-6
Energy efficiency
Reduced Total Cost of Ownership (TCO)
Application versatility
Arc welding,adhesive application,laser cutting

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
Not Applicable

Product type Characteristics


Applications
Arc welding,Adhesive bonding,Laser cutting

Physical Characteristics


Mounting positions
Angle,Ceiling,Floor,Wall
Compact footprint
Yes
Hollow Wrist
50 mm hollow-shaft wrist

Custom Options


Mounting positions
Floor,Wall,Ceiling,Angle
Integration possibilities
External axes integration via controllers
Hollow Wrist Design
50 mm hollow-shaft wrist
Software add-ons
Digital Motion Modes
Edition Variants
HW Edition for entry-level arc welding
