Commercial carborundum peeling system

Effortlessly peel a range of root vegetables with precision, optimizing batch processing for consistent results in challenging pre-processing environments.

Peels and Polishes Root Vegetables Efficiently

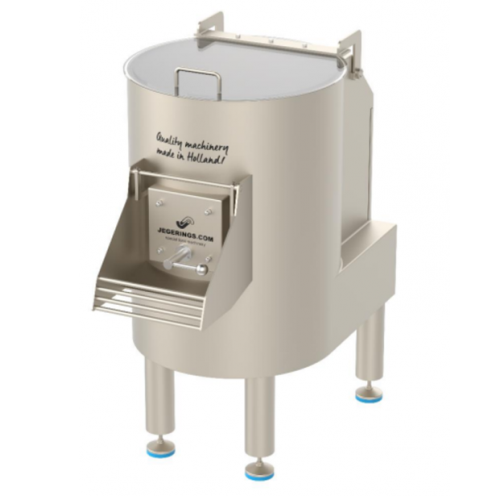

The Carborundum Peeling Machine CSM-20, from The Food Machinery Company Ltd, is designed specifically for the effective peeling and polishing of a range of root vegetables including potatoes, carrots, and more. Featuring a stainless steel construction with a carborundum interior and disc, this machine ensures even peeling and minimal material loss thanks to its curved disc design. Suitable for batch operations, it accommodates cycles of 15 to 20 kg, with processing times between 1 to 5 minutes, making it ideal for food processing companies, industrial kitchens, and vegetable processors. Its compact design includes adjustable, dismountable legs for easy cleaning and integration into existing lines. Options for pneumatic door operation and interchangeable abrasive linens are available, offering customization to suit automatic production lines and specific processing needs. Operating at 205 RPM with optimized energy consumption, this machine balances efficiency with robust performance.

Benefits

  • Enhances productivity by efficiently peeling a variety of root vegetables with minimal waste.
  • Reduces labor costs with an optional pneumatic door for automated line integration.
  • Customizable abrasive linen options extend machine life and processing capability.
  • Compact design facilitates installation and maintenance in confined spaces.
  • Energy-efficient operation with optimized motor performance.

General


Applications
Root vegetables,Vegetables,Culinary roots,Tubers
End products
Turnip quarters,Kohlrabi ribbons,Potato chips,Celeriac cubes,Carrot sticks,Beetroot slices,Ginger pieces,Small carrot rounds,Small potato coins
Steps before
Sorting,Washing
Steps after
Rinsing,Slicing,Packing
Input ingredients
potatoes,red beets,carrots,celeriac,kohlrabi,ginger,turnip
Output ingredients
peeled potatoes,peeled red beets,peeled carrots,peeled celeriac,peeled kohlrabi,peeled ginger,peeled turnip
Market info
The Food Machinery Company Ltd. is known for manufacturing bespoke food processing equipment, like conveyors and mixers, offering engineering expertise for industrial-scale food production, backed by a reputation for quality and tailored solutions in the UK and international markets.

Technical Specifications


Dimensions
595 x 750 x 1050 mm
Height of entrance
990 mm
Height of exit
500 mm
Electrical data
3 Ph / 400 V / 50 Hz / 1.1 kW / 2.7 A / N2 = 205 RPM
Weight
125 kg
Content per cycle
15 – 20 kg
Cycle time
1 – 5 min
Material
Stainless steel
Peeling mechanism
Carborundum peeling disc
Optional features
Pneumatic operation,Abrasive linen

Operating Characteristics


Working Mechanism
Carborundum disc with circulation
Integration Level
Standalone/Batched
Cleaning Method
Manual
Automation Level
Manual,optional pneumatic operation
Peeling Capacity
15–20 kg per cycle
Cycle Time
1–5 minutes

Material Compatibility


Abrasion resistance
High
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Stainless Steel
Density/particle size
Small products like small potatoes and carrots can be peeled

Product type Characteristics


Peeling effectiveness
Even peeling due to circulation
Food types
Potatoes,red beets,carrots,etc.
Product size compatibility
Small to large potatoes

Physical Characteristics


Compact footprint
595 x 750 x 1050 mm
Construction material
Stainless steel
Discharge method
Height of exit
Feed method
Height of entrance
Weight
125 kg
Cycle capacity
15 – 20 kg per cycle
Cycle time
1 – 5 min

Custom Options


Integration with production line
Pneumatic operation,automatic line use
Peeling disc type
Carborundum / Abrasive linen
Disc and cylinder material
Replaceable abrasive linen
Leg adjustability
Customizable height
