Co2 laser writer for gelatin capsules

Achieve high-speed laser marking on gelatin capsules and caplets with precision, ensuring accurate product identification and enhancing batch traceability in continuous pharmaceutical and nutraceutical production.

Laser Marks Soft Gelatin Capsules and Caplets

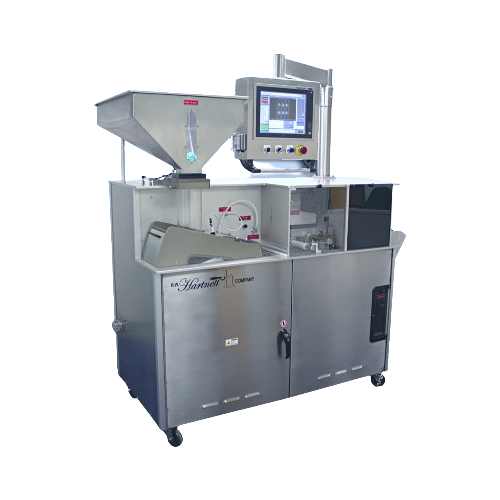

The H-Track CO2 Laser Writer from RW Hartnett Company is a specialized flatbed machine designed for precision laser marking on soft gelatin capsules and caplets, catering to the pharmaceutical and nutraceutical industries. It efficiently incorporates servo drive systems for precise print registration, coupled with an adjustable hopper to ensure maximum fill rates. This equipment’s standout feature is its high-speed throughput, producing between 120,000 to 180,000 pieces per hour. Integration into production lines is seamless, aided by its Wi-Fi connectivity and batch recording capabilities. Compliance with 21 CFR Part 11 and CE and UL certifications ensures it meets stringent industry standards. Additionally, optional features such as vision inspection systems and validation document packages are available to tailor the machine further to specific operational needs.

Benefits

  • Enhances production efficiency with high output of up to 180,000 pieces per hour.
  • Ensures precision and quality with accurate single-sided laser marking.
  • Minimizes operational downtime through quick-change tooling and easy maintenance.
  • Meets regulatory requirements and provides operational security with 21 CFR Part 11 compliance.
  • Facilitates seamless production line integration with Wi-Fi connectivity and batch recording features.

General


Applications
Supplements,Caplets,Nutraceuticals,Soft gelatin capsules,Pharmaceuticals
End products
Pain relief caplets,Vitamin d3 caplets,Melatonin capsules,Energy boost caplets,Probiotic capsules,Herbal extract capsules,Omega-3 fish oil soft gels,Multivitamin supplements,Cold and flu caplets
Steps before
Capsule Filling,Capsule Polishing,Capsule Sorting
Steps after
Quality Inspection,Batch Recording,Packaging
Input ingredients
soft gelatin capsule,caplet
Output ingredients
laser marked soft gelatin capsule,laser marked caplet
Market info
RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.

Technical Specifications


Production Output
120,000 to 180,000 pcs/hr
Electrical
240 VAC / 30 amp/ 3 phase
Air Pressure
90 psi @ 5 scfm
Adjustable Hopper
Yes
Servo Drive System
Yes
Touchscreen HMI
Swingarm 15”
Wi-Fi Connectivity
Yes
Batch Recording
Yes
Compliance
21 CFR Part 11
Certifications
CE and UL certified

Operating Characteristics


Working Mechanism
Flatbed style machine
Integrated Steps
Single sided laser marking
Maximum Fill Rate
Adjustable feed hopper
Production Output
120,000 to 180,000 pieces per hour
Precision
Servo drive system for print registration

Material Compatibility


Biological compatibility
Soft gelatin capsule,caplet

Custom Options


Control panel type
Swingarm 15” Touchscreen HMI
Adjustable hopper
Yes,for maximum fill rate
