Cleaning in place system for beverage production

Ensure maximum hygiene and efficiency in beverage production with a modular system designed for comprehensive inline cleaning and sanitation tasks.

Cleans and Disinfects Beverage Production Lines

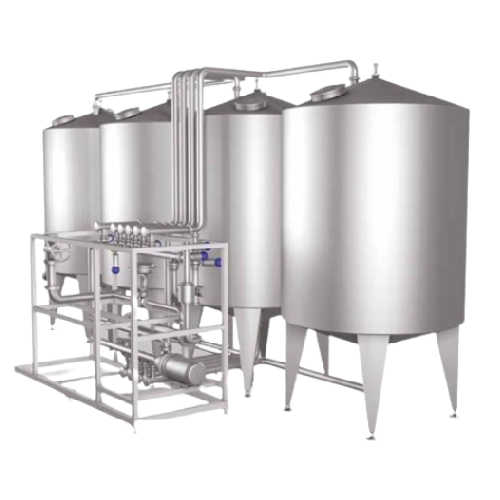

The EASY.Clean Modular CIP Unit from A Due S.p.A. is a versatile cleaning-in-place solution designed for beverage manufacturers and food processing companies. This system excels at maintaining hygiene standards by managing multiple washing programs simultaneously, vital for operations handling water, juices, milk, plant-based drinks, and carbonated beverages. Its fully programmable interface offers control over critical parameters such as washing cycles, detergent concentrations, contact times, and temperature, ensuring thorough removal of organic material and biofilm.

The unit’s modular design allows seamless integration into existing production lines, capable of operating as a manual, semi-automatic, or fully automatic system. With the capability to handle large volumes, the EASY.Clean unit is ideal for diverse liquid and slurry products, supporting industries from dairy to non-alcoholic beverage production. Its energy-efficient design incorporates energy recovery features that minimize consumption, while optional configurations allow for use with existing storage tanks to reduce infrastructure costs. Constructed from highly durable materials, it offers resistance to corrosion, ensuring longevity and compliance with industry sanitation standards.

Benefits

  • Enhances sanitation efficiency with precise control over cleaning parameters.
  • Reduces operational costs through energy recovery and low consumption.
  • Adapts to existing infrastructure, minimizing initial investment.
  • Facilitates modular expansion to accommodate future growth.
  • Ensures compliance with hygiene standards across diverse beverage operations.

General


Applications
Water,Plant-based drinks,Milk,Non-alcoholic beer,Non-carbonated beverages,Fantasy drinks,Carbonated soft drinks (csd),Juices,Hard seltzers,Flavored water
End products
Purified water,Apple juice,Orange juice,Almond milk,Lemon-lime soda,Soy milk,Hard lemonade seltzer,Cola,Energy drinks,Non-alcoholic lager,Raspberry flavored sparkling water
Steps before
Pre-rinsing,Initial Cleaning,Pre-wash Inspection
Steps after
Sanitization,Final Rinse,Inspection
Input ingredients
detergents,disinfectants,water,organic material,biofilm
Output ingredients
clean systems,disinfected equipment,removed organic material,removed biofilm
Market info
A Due is known for designing and manufacturing beverage processing equipment, specializing in water treatment, syrup preparation, and complete automation solutions for the beverage industry, with a strong reputation for innovation and quality engineering.

Technical Specifications


Automation
Manual / Automatic / Semi-automatic
Contact time
Adjustable up to specific process requirements
Cycle temperature
Configurable based on sanitizing needs
Energy recovery
Integrated for efficient usage
Number of washing solutions
Up to 4
Temperature control
Yes,adjustable
Wash cycle management
Multiple programs simultaneously

Operating Characteristics


Automation level
Manual / Automatic / Semi-automatic
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP
CIP/SIP
CIP 121°C
Energy efficiency
Low consumptions
Expandability
Modular and suitable for expansion
Number of washing solutions managed
Up to 4
Self-cleaning capability
Self-washing (CIP of CIP)

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Modular design
Control panel type
Fully programmable
Discharge method
Not specified
Tank configuration
Available without tanks
Compact footprint
Yes

Custom Options


Modular design
Yes
Control of CIP parameters
Washing cycles,concentration,times,temperature
Expansion capability
Yes
Integration with existing systems
Adaptable to existing technologies
Programmability
Fully programmable
Tanks
Modular skid available without tanks
Energy recovery
Yes
