Clarifying decanters for oil & gas
Optimize your offshore operations with high-efficiency clarifying decanters designed to handle complex slop treatment and drilling fluid recovery, ensuring environmental compliance and reducing discharge costs.
Separates and Processes Slop and Drilling Fluids

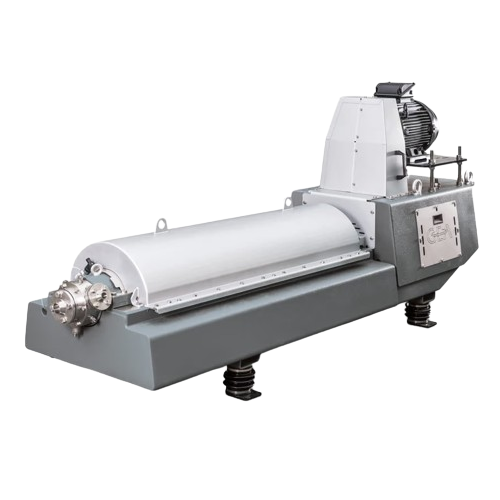

The Clarifying Decanter Centrifuges from GEA are engineered to meet the rigorous demands of the oil, gas, and marine sectors, offering robust solutions for slop treatment and waste separation. These centrifuges employ a low bowl angle design for enhanced thickening and a hydraulic scroll drive for efficient separation. Capable of handling varied compositions like crude oil, drilling muds, and chemical slurries, they operate seamlessly in continuous, high-speed environments. Skid mounted and self-contained, they integrate effortlessly into your production line with automated, PLC-controlled operations. Constructed with stainless steel components, they ensure corrosion resistance and durability, suitable for challenging environments. Certified for safety with explosion-proof designs, these centrifuges offer an easy maintenance regime with pillow block designs and exchangeable solid discharge ports, maximizing uptime and operational efficiency.
Benefits
- Enhances processing efficiency with continuous, high-speed operation.
- Minimizes environmental impact through effective slop oil recovery.
- Reduces maintenance time with quick service pillow block design.
- Supports safe operation in hazardous zones with explosion-proof certification.
- Extends equipment lifespan with corrosion-resistant stainless steel construction.
- Applications
- Marine,Gas,Environmental systems,Oil,Chemical,Slop treatment,Drilling fluids
- End products
- Barite waste,Natural gas,Oil spill recovery,Chemical slurries,Drilling mud,Slop oil,Bentonite waste,Crude oil,Marine bilge water
- Steps before
- Drilling,Oil Extraction,Fluid Mixing
- Steps after
- Slop Treatment,Water Discharge,Solid Waste Handling
- Input ingredients
- drain water,slop water,oil spills,brine,bentonite,barite,cement,mud,drilling fluids
- Output ingredients
- hydrocarbons,treated water,separated solids,oil
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Bowl angle
- Low for optimal thickening
- Hydraulic scroll drive
- Maximum power
- Specific gravity handling
- Up to 1.5 sg
- Operational environment
- ATEX Ex-Zone 1 (Category 2G)
- Temperature Class
- T3
- Design
- Self-contained skid mounted
- Material
- Stainless steel wetted parts
- Drive system
- Innovative and rigid
- Explosion-proof design
- Available
- Torque monitoring
- Included for safe operation
- Bowl Angle
- Low for optimal thickening
- Scroll Drive
- Hydraulic for maximum power
- Installation Zone
- ATEX Ex-Zone 1 (Category 2G)
- Temperature Class
- T3
- Automation Level
- Integrated Control Panel
- Operational Mode
- Self-contained skid mounted
- Specific Gravity Handling
- Up to 1.5 sg
- Application Type
- Drilling Fluid Treatment
- Design
- Explosion-proof design available
- Environmental Benefit
- Reduces discharge to sea to a minimum
- Slop Treatment
- High efficiency
- Process Configuration
- Deep pool concept
- Abrasion resistance
- Tungsten carbide tiles or hard faced scroll
- Corrosive resistance (e.g. acids)
- Stainless steel wetted parts
- Cleanability
- Self-contained skid mounted systems
- Density/particle size
- Specific gravity up to 1.5 sg
- ATEX certification
- Ex-Zone 1 (Category 2G)
- Bowl design
- Patented for handling brine
- Bowl angle
- Low for optimal thickening
- Frame design
- Welded rigid frame
- Discharge method
- Exchangeable solid discharge ports
- Scroll design
- Tungsten carbide tiles or hard faced
- Material of construction
- Stainless steel wetted parts,hood
- Skid mount
- Self-contained skid mounted centrifuge systems
- Control panel type
- Integrated control panel
- Discharge method
- Exchangeable solid discharge ports
- Drive system
- Hydraulic scroll drive
- Design
- Patented bowl design
