Centrifuge for plastics recycling

Enhance your recycling process with a centrifuge designed to efficiently separate and dewater a diverse range of plastics and materials, achieving higher purity and reduced waste in continuous, high-speed operations.

Separates and Dewaters Mixed Plastics Efficiently

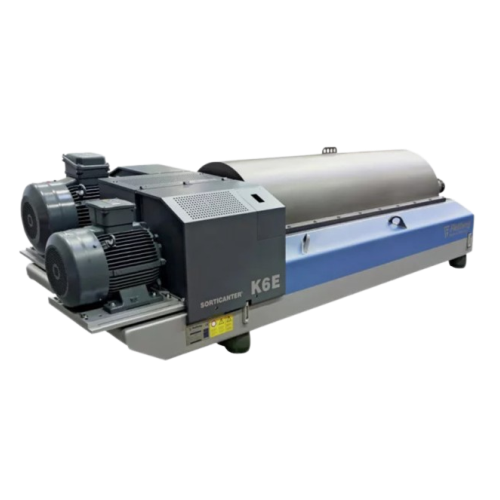

The Sorticanter® centrifuge from Flottweg is designed to revolutionize plastic and waste recycling operations. It employs a robust centrifugal method to efficiently separate and dewater mixed plastics, including challenging materials like PVC and fabric fibers. This innovative equipment excels in applications such as plastics recycling, waste processing, and industrial by-product management, producing high-purity end-products like recycled plastic pellets and PVC compounds.

With a continuous, high-speed operation, the Sorticanter® ensures minimal personnel intervention, reducing costs. The machine’s scroll design and high g-forces allow it to handle particles smaller than 1 mm, enhancing separation efficiency and product quality. The integrated system consumes less fresh water and energy, making it a sustainable choice. Constructed for durability, the machine supports process reliability with an average operation time of 8000 hours per year.

Available in corrosion-resistant materials, the Sorticanter® ensures longevity, while its user-friendly interface simplifies operation. Its closed system design minimizes odor exposure, and all components meet stringent quality standards, underscoring Flottweg’s commitment to excellence. Customization options are provided to meet specific processing demands, supported by Flottweg’s engineering expertise and after-sales services.

Benefits

  • Enhances product purity and value by efficiently separating mixed plastic and waste particles.
  • Lowers operational costs with reduced fresh water and energy consumption.
  • Ensures high process reliability with continuous 8000-hour annual operation.
  • Minimizes labor costs and maintenance with automated, user-friendly controls.
  • Supports sustainability efforts by reducing waste and reclaiming valuable materials.

General


Applications
Beverages,Edible fats and oils/biofuels,Palm oil,Waste processing,Slaughterhouse by-products,Municipal waste,Oil sludge,Fish by-products,Fabric fibers,Surimi,Food residue,Industrial waste,Seed oil,Plastics recycling,Plastics,Mining,Used cooking oil,Pvc
End products
Fruit juice concentrates,Reclaimed mining tailings,Treated oil sludge,Composted food residue,Fabric yarn,Processed animal fats,Refined vegetable oils,Reclaimed cooking oil,Processed fish oils,Refined palm oil,Recycled plastic pellets,Refined seed oils,Biodiesel,Pvc compounds,Surimi blocks
Steps before
Collection,Sorting,Pre-cleaning,Shredding
Steps after
Further Drying,Packing,Pelletizing,Recycling Processing
Input ingredients
waste plastics,plastic fibers,light packaging,PVC,mixtures of fabric fibers,particles smaller than 1 mm
Output ingredients
purified plastics,drier plastic particles,separated light and heavy plastic phases
Market info
Flottweg is renowned for manufacturing high-performance centrifuges, separators, and belt presses, specializing in solid-liquid separation technology for various industries. They are known for innovation, quality, and customized solutions meeting specific customer needs.

Technical Specifications


Separation Efficiency
High separation efficiency
Particle Size Handling
Less than 1 mm
Operating Time
8000 hours per year
Energy Consumption
Low
G-Force
High
Scroll Design
Specialized for plastics
Capacity
Varied based on model (K4D,K6E)
Dimensions (K4D)
3400x130x1100 mm
Weight (K4D)
3050 kg
Dimensions (K6E)
5100x1800x1300 mm
Weight (K6E)
9750 kg
Material Dryness
Considerably drier than with other processes
Automation
User interface controlled
Pond Depth
Adjustable

Operating Characteristics


Working mechanism
Centrifugal force separation
Scroll design
Specialized for higher dryness
Integration steps
Separation and dewatering
Automation level
Manual / PLC
Batch vs. continuous operation
Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material type
Plastics (PVC and others)


ISO Certification
ISO 14001

Physical Characteristics


Machine Footprint
5100x1800x1300 mm / 16.79x5.81x4.13 ft (K6E model)
Machine Footprint
3400x1300x1100 mm / 11.15x4.1x3.67 ft (K4D model)
Decanter Bowl
Special design for plastics recycling
Decanter Scroll
Special Sorticanter® scroll design

Custom Options


Control panel type
HMI with user interface
Integration possibilities
PLC,SCADA systems
Drive system
Simp Drive® technology
Scroll design
Specialized for high g-forces
Impeller design
Adjustable
Size options
K4D,K6E dimensions available
