Catalyst cartridge switching system for flow chemistry

Effortlessly switch between multiple catalysts in a single run, optimizing your reaction development for continuous flow chemistry operations.

Switches Catalyst Cartridges for Flow Chemistry

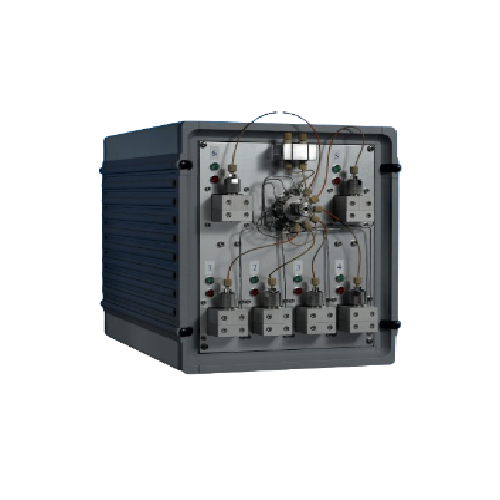

The CatCart Changer from ThalesNano revolutionizes catalyst testing with its state-of-the-art 6-channel valve system, designed for seamless integration with the H-Cube series reactors. This innovative equipment allows rapid switching between catalyst cartridges in flow chemistry applications, significantly enhancing research and development efficiency in pharmaceuticals and chemicals. Operating under high-pressure conditions up to 100 bar and temperatures up to 100°C, it supports a wide range of chemical processes such as catalyst screening, library production, and reaction scale-up. Ideal for producing active pharmaceutical ingredients, specialty chemicals, and small molecule drugs, the system is crucial for continuous and automated benchtop operations. The CatCart Changer allows precise control of reaction conditions with customizable temperature and pressure settings for each chamber, ensuring optimal catalyst performance and scalability in pilot-scale batches. Built for durability, it integrates effortlessly into existing production lines while ensuring streamlined workflows in research laboratories and chemical RD departments.

Benefits

  • Enhances research productivity by enabling rapid catalyst switching without production interruptions.
  • Supports precise reaction optimization with customizable chamber conditions, improving catalyst performance.
  • Facilitates scalable chemical synthesis, streamlining the transition from lab-scale to pilot-scale production.
  • Increases process efficiency with automated cartridge switching, minimizing manual intervention.
  • Ensures robust operation under demanding conditions, suitable for high-pressure and high-temperature applications.

General


Applications
Fine chemicals,Chemical manufacturing,Laboratory synthesis,Chemical research,Catalyst development,Pharmaceuticals
End products
Small molecule drugs,Organic compounds,Specialty chemicals,Active pharmaceutical ingredients (apis),Chemical intermediates,Polymer additives,Pilot-scale chemical batches,Research compounds,Catalyst samples,Advanced materials,Process development prototypes
Steps before
Synthesis,Compound preparation,Catalyst loading
Steps after
Reaction analysis,Product isolation,Yield optimization
Input ingredients
compounds,catalyst cartridges
Output ingredients
processed compounds,catalyst screening results,synthesized compound libraries
Market info
Thalesnano is known for manufacturing advanced flow chemistry solutions, particularly in catalyst and hydrogenation technologies. They are recognized for their expertise in continuous processes, enhancing safety and efficiency in chemical synthesis.

Technical Specifications


Pressure range
from atmospheric pressure to 100 bar
Temperature range
from room temperature to 100 °C
Dimensions
height
Weight
12 kg (27 lbs)
Mains voltage
100 – 230 V (AC)
Mains frequency
50 – 60 Hz
Power uptake
max. 500 VA
Fuses
2×3.15A – 230V,2×6.3 A – 117V

Operating Characteristics


Working mechanism
Dynamic flow switching
Integrated steps
Seamless integration with H-Cube series reactors
Automation level
Manual / PLC via H-Cube Pro
Changeover time
Effortless catalyst cartridge switching
Batch vs. continuous operation
Continuous catalyst screening

Product type Characteristics


Catalyst changeover capability
6 channels

Physical Characteristics


Compact footprint
Width
Weight
12 kg (27 lbs)
Control panel type
Direct operation through H-Cube Pro

Custom Options


Control panel type
Integrated with H-Cube Pro
Channel customization
6-channel system
Integration possibilities
With ThalesNano H-Cube series reactors
Temperature and pressure control
Individual chamber settings
