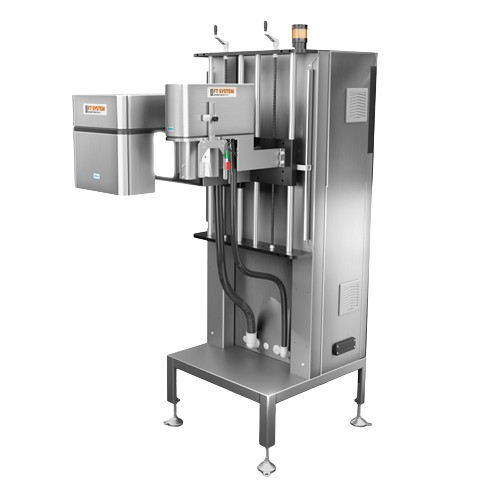

Cap inspection and fill level inspection system for beverage containers

Ensure precise cap application and fill level measurement in high-speed bottling operations, eliminating non-compliant containers to maintain quality and regulatory standards in your production line.

Inspects Caps and Measures Fill Levels

The IT700-IoT and CL700-IoT from Antares Vision Group offer a seamless solution for comprehensive cap and fill level inspection in the beverage and packaging industries. The IT700-IoT module performs detailed checks to ensure correct cap application, analyzing integrity and positioning across various cap styles like flat, tethered, and sport-cap. The CL700-IoT module provides precise fill level measurements using X-ray, infrared, and high-frequency technologies to handle diverse liquids and packaging, minimizing regulatory non-compliance. With a compact design, this system integrates multiple inspection tasks into a single efficient operation, reducing costs and conserving production line space. Operating under continuous, high-speed automated settings, these IoT-capable systems allow for remote monitoring and data analysis, enhancing production efficiency. Engineered for versatility, the system accommodates up to five cameras and offers tailored configurations like tethered caps and foam compensation, ensuring optimized performance across different bottling applications.

Benefits

  • Enhances quality control by ensuring precise cap application and fill levels.
  • Integrates multiple inspections into a single compact system, reducing footprint and costs.
  • Increases production efficiency with continuous, high-speed automated operations.
  • Supports regulatory compliance with accurate defect detection and fill level measurements.
  • Facilitates brand protection by identifying and eliminating faulty products.

General


Applications
Beverages,Dairy beverages,Liquid formulations,Spirits,Wines,Juices,Soft drinks,Bottled drinks
End products
Bottled water,Apple juice,Whiskey,Orange juice,Red wine,Yogurt drinks,Flavored milk,Carbonated soft drinks,White wine,Vodka
Steps before
Filling,Capping
Steps after
Packing,Labeling,Quality Assurance
Input ingredients
bottles,containers,caps,liquid products,packaging
Output ingredients
inspected bottles,inspected containers,compliant caps,correctly filled containers,products with certified fill levels,defect-free packaging
Market info
Antares Vision is renowned for providing inspection, track and trace, and quality control systems primarily to the pharmaceutical, food, and beverage industries, ensuring product integrity and supply chain transparency.

Technical Specifications


Cap Inspection System Model
IT700-IoT
Fill Level Inspection System Model
CL700-IoT
Detection Technology
X-ray,Infrared,High frequency
Camera Configuration
2 to 5 cameras
Foam Compensation
Yes
Tethered Cap Configuration
Yes
X-ray Technology Compatiblity
PET,metal,HDPE
High-frequency Technology Compatibility
PET,Glass
Control Panel Type
Single control panel
Footprint
Particularly small footprint
Production Efficiency
Increased efficiency
Cap Types Supported
Flat,Tethered,Sport-cap,Cork,Roop
Data Analysis Interface
User-friendly
Historical Production Data Storage
Yes
Brand Inspection Support
Yes

Operating Characteristics


Inspection Method
X-ray,Infrared,High-frequency
Control System
Single Control Panel
Automation Level
IoT Enabled
Integration Capability
Modular Structure
Foam Compensation
Enabled
Camera Configuration
2 to 5 Cameras
Footprint
Compact

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Cap type
Flat,tethered,sport-cap,cork,roop
Container type
PET,glass,metal,HDPE

Physical Characteristics


Compact footprint
Yes
Control panel type
Single control panel
Modular structure
Yes
