Bundling and shrink wrapping system

Optimize your packaging line with a system that seamlessly bundles and shrink wraps, ensuring precise handling and minimized downtime for high-speed pharmaceutical and personal care production.

Bundles and Shrink Wraps Bottles and Cartons

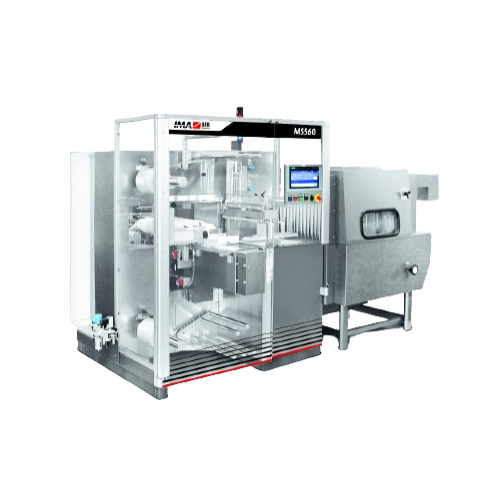

The MS560 from IMA Group is a versatile bundling and shrink wrapping machine designed for continuous operations across various industries, including pharmaceutical, food, and personal care. Specially engineered to handle bottles and cartoned products, it utilizes servo-driven technology for precise product handling with throughput of up to 40 cycles per minute. Notably, the MS560 features a tool-free size changeover in just five minutes, thanks to digital indicators, ensuring minimal downtime and maximized productivity.

For seamless integration into existing production lines, it comes equipped with automatic film splicing to virtually eliminate reel change times, and a transparent window with internal lighting for easy inspection of the heat chamber. Designed for both ergonomic operation and maintenance efficiency, the machine prioritizes operator accessibility. Constructed with options for stainless steel components, it meets industry standards for hygiene and safety, with optional compliance to GMP protocols where necessary. The MS560 is ideal for packaging diverse end-products, ranging from medicine bottles to cartoned cosmetic items, offering reliable bundling and protection through its efficient shrink-wrapping process.

Benefits

  • Increases packaging efficiency with tool-free size changeovers and minimal downtime.
  • Lowers operational costs by eliminating reel change times through automatic film splicing.
  • Enhances product quality with precise servo-driven handling.
  • Ensures operator safety and maintenance ease with ergonomic design.
  • Supports versatile packaging needs across multiple industries, including pharmaceuticals and personal care.

General


Applications
Bottled products,Cartoned bottles,Pharmaceuticals
End products
Cartoned toothpastes,Medicine bottles,Cartoned tablets,Cartoned cosmetic bottles,Liquid antacids,Cartoned capsules,Nutraceutical bottles,Prescription drug bottles,Syrup bottles,Multivitamins,Over-the-counter drug bottles,Dietary supplements
Steps before
Bottle Filling,Cartoning
Steps after
Packing,Logistics
Input ingredients
bottles,cartoned bottles,PE film
Output ingredients
bundled bottles,shrink wrapped bottles,bundled cartoned bottles,shrink wrapped cartoned bottles
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Cycle time
5 minutes
Speed
Up to 40 cycles/min
Product dimensions (Min)
60 x 30 x 60 mm
Product dimensions (Max)
220 x 210 x 400 mm
Wrapping film
PE 40-70 micron
Automation
Servo-driven technology

Operating Characteristics


Working mechanism
Shrink wrapping with PE film
Integrated steps
Bundle and shrink wrap bottles
Automation level
Servo-driven technology
Changeover time
Tool-free in 5 minutes
Cleaning method
Ergonomic design for easy cleaning
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container compatibility
Bottles or cartoned bottles

Physical Characteristics


Compact footprint
Extremely compact
Machine Layout
T600 tunnel
Control panel type
Digital indicators

Custom Options


Control panel type
HMI with digital indicators
Integration possibilities
Optional automatic film splicing device
Changeover time
Tool-free size changeover in 5 minutes
Compact footprint
Extremely compact T600 tunnel
