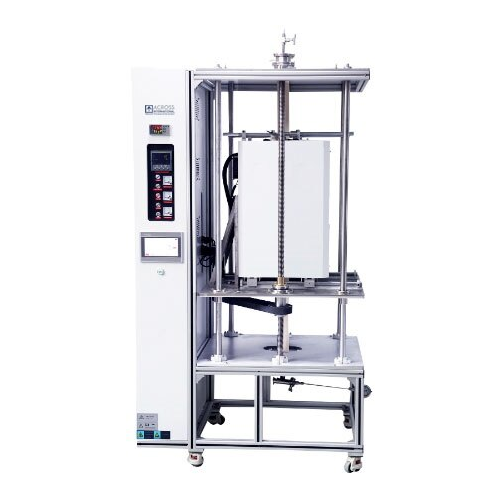

Bridgman crystal growth furnace for advanced crystallization processes

Achieve high precision in crystal growth with this furnace, designed to handle extreme temperatures up to 1700°C and integrate seamlessly into your laboratory’s crystallization processes.

Facilitates High-Precision Crystal Growth

The Bridgman Crystal Growth Tube Furnace 1700C 60mm OD 1-Zone from AiCGF1700F series offers a specialized solution for material science and semiconductor industries. Equipped with Kanthal A1 resistance coil wire from Sweden and Mitsubishi high-quality alumina fiber insulation from Japan, it minimizes heat loss while achieving temperatures up to 1700°C. Featuring a swing-open chamber and a 50-segment Eurotherm 3504 PID controller for precise digital control, it integrates seamlessly into laboratory settings. This furnace is essential for producing high-purity crystal products such as silicon wafers, sapphire substrates, and superconductor materials. With built-in safety features and computer connectivity for control and monitoring, it ensures efficient operation and maintenance. Optional UL, CSA, and CE compliance further enhance its suitability for stringent industrial standards.

Benefits

  • Enables precise thermal control for optimal crystal quality and purity.
  • Streamlines laboratory operations with automated hoisting and digital monitoring.
  • Enhances safety with overheat and power failure protection systems.
  • Supports diverse research needs with its wide temperature range and robust design.
  • Offers seamless integration with existing laboratory equipment through PC connectivity.

General


Applications
Metallurgy,Semiconductor materials,Research,Crystal growth,Material science,Development,Laboratory testing,Electronic components
End products
Sapphire substrates,Gallium arsenide substrates,Optical component blanks,Single crystal silicon wafers,High-purity metal crystals,Monocrystalline semiconductor ingots,Led substrates,Thermoelectric materials,Silicon carbide wafers,X-ray detector crystals,Superconductor materials,Laser crystal rods,High-frequency electronics substrates,Photodetector materials
Steps before
Preparation of crystal materials,Pre-heating of furnace,Installation of quartz tube,Sealing of quartz tube flanges,Temperature set-up on Eurotherm controller
Steps after
Cooling of furnace,Removal of crystal structure,Inspection of crystal growth,Cleaning of furnace components
Input ingredients
raw materials for crystal growth,gaseous atmosphere,controlled environment
Output ingredients
grown crystal,crystallized material
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Maximum Working Temperature
1700 °C
Maximum Constant Working Temperature
1600 °C
Minimum Working Temperature
Ambient
Heating Element Type
Kanthal A1 2.0 resistance coil wire
Thermocouple Type
Type B
Refractory Lining
Mitsubishi high quality 1500 grade fiber alumina
Temperature Controller
Eurotherm 3504 digital 50-segment PID controller
Unit Dimensions
40" x 20" x 70" (LxWxH)
Unit Weight
500 lbs
Maximum Heating Rate
< 30°C / minute
Heating Zone Length
6 + 6 + 6 inches,3 zones
Temperature Controller Precision
± 1°C
Automatic Hoisting Control
0.1-2000 um/second (adjustable)
Electrical Requirements
208-240V,50/60Hz,single phase,5.2 KW

Operating Characteristics


Maximum Working Temperature
1700 °C (2 hours max continuous run time)
Heating Rate
< 30°C / minute
Automation Level
High precision Eurotherm 3504 PID controller
Batch vs. Continuous Operation
Batch
Overheat Protection
Shuts down if temperature is outside of range
Power Failure Protection
Resumes operation after power is reestablished
Thermal Process Control
Minimal overshoot

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


CE marking
Yes
UL Certification
Optional
CSA Certification
Optional

Physical Characteristics


Footprint
40" x 20" x 70" (LxWxH)
Weight
500 lbs
Heating zone length
6 + 6 + 6 inches,3 zones
Heating element type
Kanthal A1 2.0 resistance coil wire
Chamber type
Swing-open
Refractory lining
Mitsubishi high quality 1500 grade fiber alumina
Control panel type
Eurotherm 3504 PID controller

Custom Options


Control panel type
Eurotherm 3504 PID controller
Heating element type
Kanthal A1 resistance coil wire
Thermocouple type
Type K,with additional thermocouple
Furnace chamber access
Swing-open chamber
Remote Control Capability
PC interface for remote control and monitoring
Safety features
Automatic hoisting limit switch,overheat protection,power failure protection
