Box weight checkweigher for bulk bag-in-box applications

Ensure precise weight control in bulk packaging lines with this high-speed checkweigher, designed to streamline your quality control process by easily integrating into existing operations.

Weighs and Verifies Bulk Box Contents

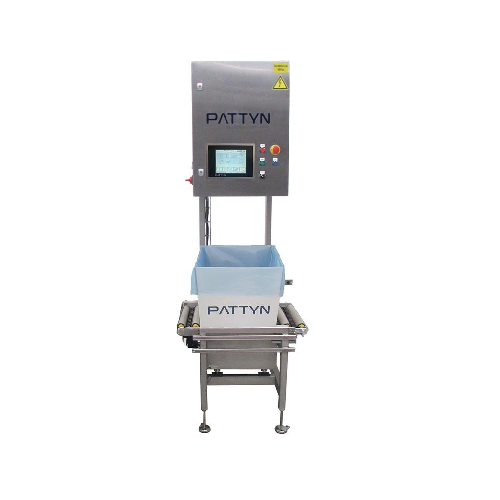

The Checkweigher CW-11 from Pattyn is a compact weighing solution specifically designed for bulk bag-in-box applications. It provides precise weight verification, ensuring each box falls within set parameters, and includes an option for a reject conveyor. Utilizing a roll conveyor, the CW-11 can maintain box orientation during rejection. It’s capable of standard throughput up to 12 containers per minute, with continuous models offering higher speeds. Ideal for food and packaging industries, the CW-11 integrates seamlessly into automated lines with a Human-Machine Interface (HMI) for streamlined operation and communication. It accommodates containers ranging from cardboard boxes to plastic crates and trays.

Benefits

  • Ensures product quality by consistently verifying box weights, reducing discrepancies in bulk packaging.
  • Enhances line efficiency with optional reject conveyor for seamless removal of non-compliant boxes.
  • Integrates effortlessly into existing Pattyn packaging lines, streamlining operations and communication.
  • Increases throughput capabilities with high-speed options for demanding production environments.
  • Optimizes space with its compact design, suitable for tight production areas.

General


Applications
Trays,Bulk bag-in-box applications,Plastic crates,Cardboard boxes
End products
Powdered milk,Tea leaves,Bulk nuts,Snack foods,Frozen vegetables,Confectionery items,Bulk grains,Raw meat cuts,Coffee beans,Cheese blocks,Seafood products,Dried fruits
Steps before
Case Erection,Bag Insertion,Weigh Filling
Steps after
Bag Sealing,Case Closing,Palletizing
Input ingredients
boxes,bulk bag-in-box,cardboard box,plastic crate,tray
Output ingredients
checked weight boxes,rejected boxes
Market info
Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.

Technical Specifications


Checkweigher Speed
Standard
Continuous
above 12 c/min
Weight Range
Set limits specific
Rejection System
Roll conveyor
Container Size Minimum
L.300 x W.200 x D.100 mm
Container Size Maximum
L.800 x W.500 x D.650 mm
Integration
Compatible with Pattyn line
Automation
HMI for easy operation and communication
Container Types
Cardboard box,Plastic crate,Tray

Operating Characteristics


Automation level
Integrated into Pattyn line
Batch vs. continuous operation
Batch / Continuous
Changeover time
Optimized for quick integration
Cleaning method
Manual
Weight Capacity
Handles up to 12 c/min

Material Compatibility


Box material compatibility
Cardboard box,Plastic crate,Tray
Conveyor material suitability
Roll conveyor

Product type Characteristics


Container type
Cardboard box / Plastic crate / Tray

Physical Characteristics


Machine footprint
Compact
Container dimensions
Min. L.300 x W.200 x D.100,Max. L.800 x W.500 x D.650
Discharge method
Roll conveyor
Control panel type
HMI for easy operation

Custom Options


Compact footprint
Yes
Control panel type
HMI
Integration possibilities
Pattyn line
Discharge method
Reject conveyor
