Beverage carbonation and mixing unit

Streamline your beverage production with a unit that ensures precise carbonation and mixing, minimizing syrup and product loss while delivering consistent quality and blending efficiency.

Carbonates and Mixes Beverages Continuously

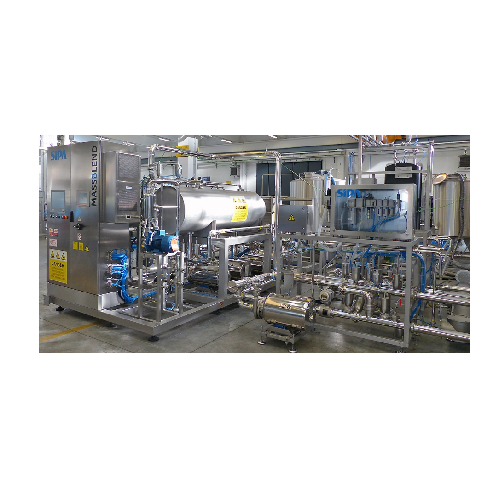

The Massblend system from SIPA is a highly efficient continuous beverage carbonation and mixing unit that significantly enhances the beverage production process. It employs an inline proportional dosing system with a mass flow meter to ensure accurate CO2 carbonation and syrup blending. This equipment is ideal for producing carbonated soft drinks, mineral waters, and juices, supporting both high and low carbonation levels with a dosing accuracy of ±0.05 V/V for CO2 and ±0.03 °Bx for syrups.

The Massblend system is available in models with capacities ranging up to 66,000 liters per hour, providing substantial throughput for demanding operations. Fully automatic and PLC-controlled, it integrates smoothly into existing production lines, featuring a user-friendly 15-inch touch-screen panel for efficient operation. Its design emphasizes hygiene and logistics, with a compact horizontal tank arrangement facilitating easy cleaning and installation.

The unit’s innovation lies in its vacuum-driven water deaeration and mass flow-controlled carbonation, ensuring minimal residual oxygen in the final product. Constructed from AISI316 stainless steel, it offers durability and corrosion resistance suitable for the food and beverage industry. The Massblend system not only helps reduce gas consumption but also includes additional options such as product cooling and precise measurement tools, making it a versatile solution for beverage manufacturers seeking reliable performance and product consistency.

Benefits

  • Ensures precise carbonation and blending, enhancing product consistency and flavor integrity.
  • Increases efficiency with high throughput up to 66,000 liters per hour, minimizing production time.
  • Reduces gas use and energy costs through efficient carbonation and deaeration techniques.
  • Simplifies installation and cleaning with compact design and sanitary construction.
  • Enhances operational flexibility by integrating seamlessly with existing production lines.

General


Applications
Carbonated beverages,Non-carbonated beverages,Carbonated soft drinks (csd),Juices,Carbonated mineral water
End products
Orange soda,Tonic water,Apple juice,Raspberry iced tea,Orange juice,Lemon-lime soda,Grape juice,Sparkling water,Cola,Premium bottled carbonated water,Sweetened mineral water
Steps before
Water deaeration,Syrup preparation,Ingredient measurement
Steps after
Filling,Packaging,Distribution
Input ingredients
water,CO2,sugar syrup,non-carbonated beverages
Output ingredients
carbonated beverages,carbonated mineral water,juices,non-carbonated beverages
Market info

Technical Specifications


Accuracy for CO2 Dosing
± 0.05 V/V
Accuracy for Syrup Dosing
± 0.03 °Bx
Capacity
Up to 66,000 l/h
Automation
PLC-controlled
Mixing Ratio
1
Outflow Rangeability
1
Residual Oxygen in Beverage
< 1 ppm
Carbonation Range
1.5 to 4.5 V/V
Energy Saving
Insulation of product buffer tank
Material
1.4401 stainless steel (AISI316)
Cooling Option
Control and measuring equipment included

Operating Characteristics


Working Mechanism
Continuous
CIP Principles
Hygienic Design,Easy Cleaning
Flow Type
Inline Continuous
Automation Level
Fully Automatic with PLC Control
Mixing Method
In-line Proportional Dosing System
CO2 Dosing System
In-line with Mass Flowmeter
Energy Efficiency
Economical Use of Space
Changeover Time
Start/Stop with No Product Loss
Deaeration Principle
High Vacuum Tank
Logistics
Packable in Containers for Fast Installation
Product Handling
Gentle
Control Interface
Touch-Screen Operator Panel

Material Compatibility


Corrosive resistance (e.g. acids)
1.4401 stainless steel (AISI316)
Cleanability
High hygienic design
Biological compatibility
0
Abrasion resistance
0
Density/particle size
0


3A Sanitary Standards
Potentially Compliant
GMP Compliance
Potentially Compliant
FDA Materials
Potentially Compliant
CE Marking
Potentially Compliant
EHEDG Certification
Potentially Compliant

Physical Characteristics


Compact footprint
Yes
Control panel type
15-inch touch-screen operator control panel
Discharge method
In line proportional dosing system
Tank shape and size
Horizontal arrangement

Custom Options


Control panel type
15-inch touch-screen operator control panel
Integration options
Xfill version for direct integration with the filler
Dosing system
In line proportional CO2 dosing system
Pump control
Frequency-controlled pumps
