Bench-top labeling system for cylindrical and shaped containers
Effortlessly label diverse bottle shapes and sizes with precision, enhancing packaging efficiency and adaptability in dynamic production environments.
Applies Self-Adhesive Labels to Containers

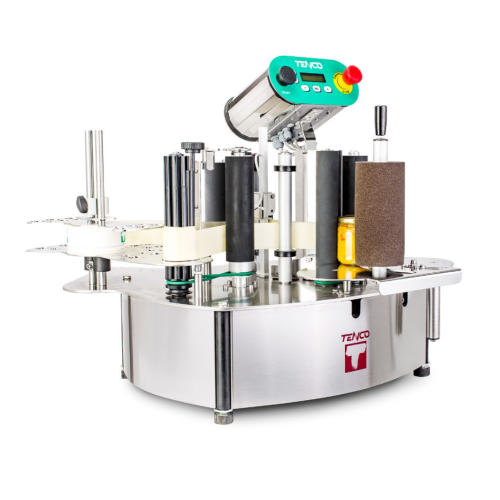

The ET-PRO Labeling Machine from Tenco is a versatile bench-top solution designed to apply self-adhesive labels to a diverse range of container shapes, including cylindrical, square, conical, and uniquely shaped bottles and jars. What sets the ET-PRO apart is its capability to handle multiple labeling formats, making it suitable for industries such as beverage, cosmetic, food, chemical, and pharmaceutical.
This semi-automatic machine provides flexibility with interchangeable positioning plates, enabling the labeling of bottles with maximum precision and minimal error, as low as +/- 3 mm. It’s engineered to accommodate various container materials such as glass, PET, and rigid plastics, and it supports the application of back labels and markers for production batch or expiration dates. The ET-PRO seamlessly integrates into existing production lines with available configurations like thermal transfer markers and ultrasonic sensors for transparent labels.
The machine’s compact size allows it to fit into tight production spaces, offering a maximum production rate of 600 bottles per hour, depending on bottle format. Its electric power supply and low compressed air consumption make it energy efficient. Additionally, Tenco offers customization options with engineering support, ensuring the machine is tailored to specific production needs.
Benefits
- Enhances production efficiency with quick setup for multiple container formats.
- Maintains labeling precision with an error margin as low as +/- 3 mm.
- Integrates seamlessly into existing lines with minimal space requirements.
- Reduces energy use with optimized electric and compressed air consumption.
- Customizable with a range of accessories to fit specific production needs.
- Applications
- Food,Beverage,Cosmetic,Chemical,Pharmaceutical
- End products
- Face cream jars,Medicine bottles,Sauce jars,Wine bottles,Olive oil bottles,Cleaning solution bottles,Spirit bottles,Chemical spray containers,Syrup bottles,Shampoo bottles
- Steps before
- Bottle sampling,Roll label preparation,Container cleaning
- Steps after
- Packing,Quality inspection
- Input ingredients
- cylindrical bottles,square bottles,conical bottles,rounded containers,glass bottles,PET bottles,rigid plastic bottles,hexagonal jars,octagonal jars,plastic containers
- Output ingredients
- labeled cylindrical bottles,labeled square bottles,labeled conical bottles,labeled rounded containers,labeled jars,bottles with back label,bottles with production batch printed,bottles with expiration date printed
- Market info
- Production Capacity
- Variable,maximum 600 p/h
- Labelable Containers
- Cylindrical,square,rectangular,conical,hexagonal,octagonal,glass,PET,rigid plastic
- Dimensions
- 770 x 570 x 750 mm (h)
- Weight
- 35 kgs
- Power Supply
- Electric
- Compressed Air Consumption
- 4 bar,20 l/min only for the marker
- Energy Absorption
- 0.4 kW
- Maximum Coil Diameter
- 280 mm
- Reel Internal Diameter
- 76 mm
- Maximum Paper Support Height
- 170 mm
- Minimum Distance Between Labels
- 3 mm
- Available Voltages
- 240V - 50Hz / 110V 60Hz
- Labeling Error Margin
- ±3 mm
- Automation level
- Manual
- Batch vs. continuous operation
- Batch
- Changeover time
- Quick due to interchangeable positioning plates
- CIP/SIP
- Manual cleaning required
- Label application method
- Self-adhesive
- Container shape compatibility
- Cylindrical,Square,Conical,Custom
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container size and shape
- Cylindrical,square,conical,rounded
- Label type
- Self-adhesive
- Container material
- Glass,PET,rigid plastic
- Machine Footprint
- 770 x 570 x 750 mm h
- Weight
- 35 kgs
- Container Compatibility
- Cylindrical,square,conical,rounded
- Control panel type
- Manual
- Reel Internal Diameter
- 76 mm
- Maximum Coil Diameter
- 280 mm
- Maximum Paper Support Height
- 170 mm
- Accessory Kits
- Thermal transfer marker,ultrasonic sensor,positioning plates
- Label Application
- Back label,search label on already labeled containers
- Voltage Options
- 240V - 50Hz,110V - 60Hz
- Label Type
- Self-adhesive labels
- Container Formats
- Cylindrical,square,conical,hexagonal,octagonal,shaped
