Automatic single clipper for sausage production
When producing sausages in an industrial setting, closing sausage portions efficiently and maintaining hygiene standards is critical. A solution is required that handles various casing types while ensuring consistent operations and low maintenance.
Efficiently close sausage casings up to 55mm

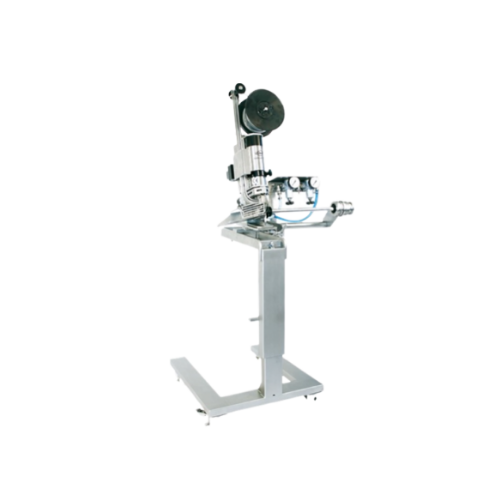

The TIPPER TIE TAN Automatic Single Clipper from JBT is specifically designed for closing sausage portions in strings with calibers up to 55mm. It works with all known natural, ring, and synthetic casings made of collagen, cellulose, or PVDC. With a speed of up to 320 cycles per minute, the TAN provides high productivity. It features a modular system design, making component replacements easy. Constructed from robust chromium nickel steel and plastic, it ensures a long service life. The clip pulse is triggered by the filler, and the system connects to all conventional filling machines. Quiet operation is achieved through pneumatic damping of the gripper and punch piston, along with integrated lubrication. The design incorporates smooth surfaces and simple elements for fast hygienic cleaning, complying with the latest safety and hygiene requirements.
Benefits
- Speeds up to 320 cycles/minute
- Compatible with all conventional filling machines
- Durable construction with long service life
- Easy component replacement due to modular design
- Quiet operation with built-in pneumatic damping
