Automatic ring-straddle stretch wrapper

Imagine a stretch wrapper that can wrap up to 180 loads per hour without putting too much pressure on your primary packaging. It will also minimize your down time and use less stretch film than your current solution.

High speed carefully controlled stretch wrapping solution

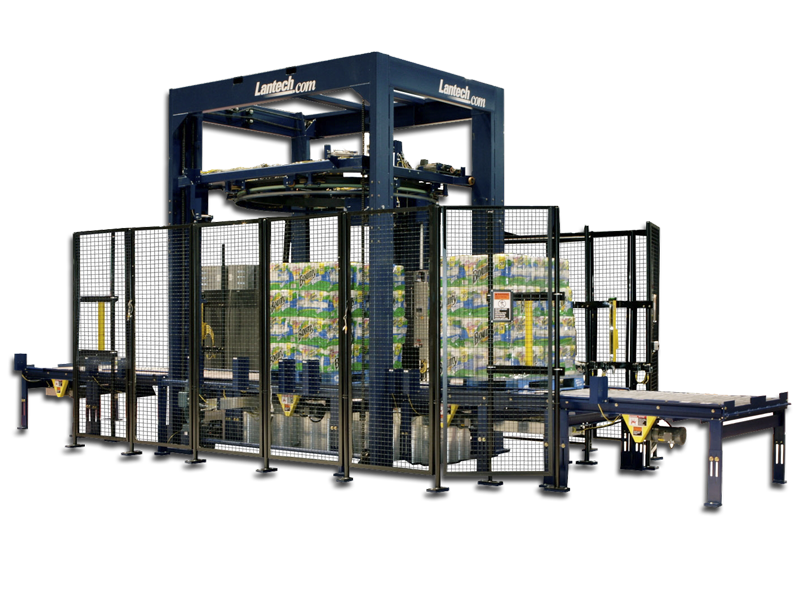

The Lantech RL Ring Straddle wrapper is a high performance robust stretch wrapping solution for a production speed between 90-180 loads per hour.

Lantech is committed to observing and understanding work first hand, inside customer plants. This has resulted in what they call LeanWrap™ Technology, which includes a patented Metered Film Delivery™ system, Machine Generated Performance Data™ and the Pallet-Grip® system.

The patented Metered Film Delivery™ system ensures that film delivery precisely matches your load containment force specifications, your load size and shapes requirements and your speed requirements.

The Machine Generated Performance Data™ has built in process controls to provide detailed wrap and production data. You can monitor containment force, load containment profiles, minimum containment force, film weight and the number of film revolutions.  Get detailed productivity reports to floor personnel or, via Ethernet, to a central monitoring system. Report loads wrapped per hour, shift, day, week and month, stoppages for starvation or blockage, number of film breaks and a host of other key metrics.

The patented Pallet-Grip® system prevents load shifting off pallet: It helps you to lock your load to the pallet with a rolled cable of film.  The rolled cable is driven down automatically to position just below upper deck of pallet.

Benefits

  • Wrap up to 180 loads per hour
  • Easy access to performance metrics
  • Minimize film breaks
  • 2X increase in wrap force without crushing or twisting
  • No need for performance tweaking
