Automatic grinder/polisher for sample preparation

Streamline your sample preparation with a versatile grinder and polisher that ensures precise control over grinding pressure and timing, enhancing the quality and consistency of metallographic examination.

Processes Metallic Samples with Precision

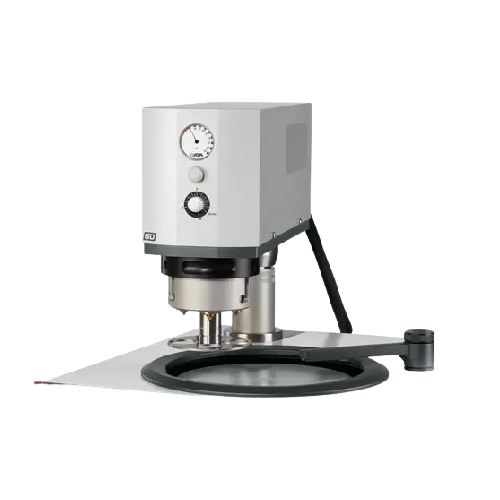

The Qpol GO from ATM Qness GmbH is designed for high-precision grinding and polishing of metallic samples. This versatile equipment features a compact design ideal for laboratory settings, integrating seamlessly with Qpol 250 M1/2 and Qpol 300 M1/2 machines for efficient sample processing. It allows precise control over grinding and polishing pressure and time, crucial for preparing metallographic and hardness test specimens in metallurgy, manufacturing, and research fields. The unit supports 1 to 4 samples with a variable single pressing force ranging from 5 to 45 N, and its LED-illuminated work area ensures visibility. The Qpol GO is complemented by the QDOSER GO dosing system for consistent application of diamond suspension and lubricant, enhancing sample preparation efficiency. The equipment’s aluminum case and powder-coated construction ensure durability, while the toolless sample holder clamping facilitates ease of use. With a robust 60 W drive power and compatibility with manual and automatic modes, the Qpol GO is an integral component for materialographic labs and quality control departments aiming for precision and reliability in sample preparation.

Benefits

  • Enhances sample preparation precision with adjustable grinding and polishing parameters.
  • Streamlines lab operations with seamless integration into existing Qpol systems.
  • Increases operator convenience with LED-illuminated, accessible work areas.
  • Reduces maintenance time with durable, toolless sample holder clamping.
  • Optimizes resource usage with efficient, automated doser compatibility.

General


Applications
Metal samples,Materialography,Sample preparation,Metallography,Material science,Hardness testing
End products
Material science research samples,Metallic microstructure samples,Metallographic specimens,Polished metal specimens,Hardness test samples
Steps before
Mounting,Cutting
Steps after
Etching,Analyzing,Hardness Testing
Input ingredients
samples,sample holder ø 120 mm,diamond suspension,lubricant,Dia-Complete
Output ingredients
prepared samples,polished samples,grinded samples
Market info
QATM is renowned for its expertise in manufacturing high-quality metallographic equipment and consumables, providing innovative solutions for material testing and analysis, which are trusted by laboratories and quality control professionals globally.

Technical Specifications


No. of samples (single pressure)
1 - 4 samples ø 40 mm
Sample holder
ø 120 mm
Single pressing force
variable,5 - 45 N
Speed (head)
150 min-1
Drive power (head)
60 W
Weight
18.5 kg
Automation
Manual / Auto dosing

Operating Characteristics


Automation level
Automatic
Batch vs. continuous operation
Batch
Pressure adjustment
Variable,5 - 45 N
Sample capacity
1 - 4 samples ø 40 mm
Integrated LED illumination
Yes
Retrofitting capability
Yes,on Qpol 250/300 M machines
Cleaning method
Manual
Flexibility in sample preparation
High

Physical Characteristics


Machine Weight
18.5 kg
Control panel type
Rotary control
Size of sample holder
ø 120 mm
Size of samples (single pressure)
1 - 4 samples ø 40 mm
Drive power (head)
60 W
Speed (head)
150 min-1
Compact footprint
Yes
Material
Aluminium case,powder coated
Illumination type
LED

Custom Options


Control panel type
Rotary control
Integration possibilities
Retrofittable on Qpol 250/300 M machines
Sample holder clamping
Toolless
Dosing system compatibility
Qdoser ONE / QDOSER ECO
