Automatic green bean snipping system

Enhance your vegetable processing line with a high-capacity solution that automatically trims green beans with precision, ensuring gentle handling and cleanliness to meet strict hygiene standards.

Snips and Trims Green Beans Efficiently

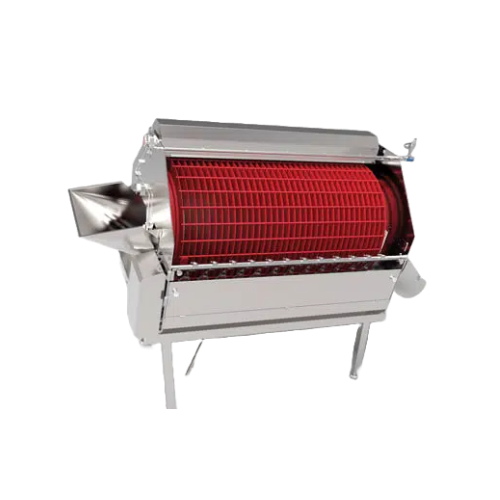

The Cabinplant bean snipper, crafted by industry leader Cabinplant, revolutionizes green bean processing with its high-capacity, automatic operation. Utilizing a robust rotating drum, the machine precisely snips beans through triangular knives, optimizing throughput while ensuring gentle handling. Ideally suited for food processing entities, it produces trimmed beans for frozen, canned, or ready-meal applications. Designed for ease of integration, the snipper can be equipped with a decluster device for streamlined separation. Adjustable segment slot openings from 3.5 to 5.0 mm cater to various end-product specifications. Constructed with stainless steel, it boasts a central greasing system and facilitates swift cleaning with access doors on both sides, upholding stringent hygiene standards. Optional configurations allow customization for specific operational requirements, making it a versatile solution across diverse vegetable processing environments.

Benefits

  • Enhances productivity by efficiently processing high volumes of green beans.
  • Minimizes labor with automatic and continuous operation.
  • Maintains product integrity through gentle handling and precise snipping.
  • Facilitates compliance with hygiene standards through easy cleaning access.
  • Offers operational flexibility with customizable slot openings and modular design.

General


Applications
Convenience food,Pet food,Fruits,Green beans,Vegetables
End products
Trimmed green beans,Pet food with green beans,Green bean casseroles,Vegetable medleys,Frozen green beans,Canned green beans,Pre-packaged convenience meals
Steps before
Sorting,Washing,Conveying
Steps after
Blanching,Packing,Distribution
Input ingredients
green beans,round green beans,flat green beans
Output ingredients
snipped green beans
Market info
Cabinplant is known for designing and manufacturing tailored processing solutions for the food industry, specializing in fish, seafood, fruits, and vegetables. They are reputed for their innovative technology and efficiency in delivering customer-specific engineered-to-order equipment.

Technical Specifications


Snipping Method
Triangular knives
Capacity
High
Material
Stainless steel
Cleaning Method
Easy to clean with access doors
Automation
Automatic
Machine Adjustment
Adjustable frame system
Slot Openings
3.5,4.0,4.5,5.0 mm
Power Source
SEW gear motor
Vibration
JVM vibrator
Product Handling
Gentle
Control Panel
Stand-alone or integrated
Additional Equipment
Decluster device

Operating Characteristics


Working mechanism
Rotating drum with slot openings
Snipping process
Triangular knives on drum exterior
Automation level
Integrated control panel
Cleaning method
Easy to clean with side doors
Height adjustment
Frame system for height adjustment
Batch vs. continuous operation
Batch processing
Gentle product handling
Rotating inside drum with round bars

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel
Cleanability
Easy to clean design
Biological compatibility
Food-grade materials

Product type Characteristics


Green bean type
Round / Flat

Physical Characteristics


Control panel type
Stand-alone electrical control panel / Integrated central control panel
Frame system
Adjustable height
Drum size
Inside rotating drum / Outside rotating drum
Discharge method
Special custom-designed infeed,outfeed and waste chute

Custom Options


Frame system
Height adjustment
Segment slot openings
3.5,4.0,4.5,5.0 mm
Slot openings type
Crinkle,standard or custom
Control panel type
Stand-alone or integrated central control panel
Chute design
Custom-designed infeed,outfeed,and waste chute
