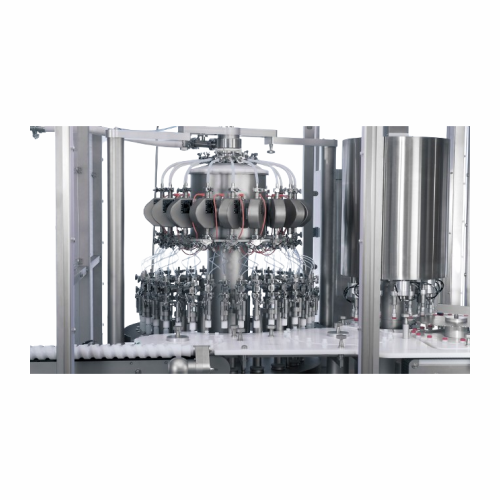

Automatic bottle and vial blower

Ensure purity and compliance in your liquid bottling line with this integrated blowing system, perfect for pharmaceutical and biotech operations needing precise cleaning of vials and bottles before filling.

Performs Particle Removal for Clean Vials and Bottles

The SW Series from Marchesini Group is an automatic air blower designed for pharmaceutical and biotech applications, ensuring the sterility of vials and bottles by eliminating particulates using a precise air and suction mechanism. It features a robust stainless steel construction and complies with cGMP and FDA standards, providing reliability and seamless integration into existing production lines. The equipment operates with a vertical blowing wheel equipped with 32 pockets and 32 blowing needles, ensuring thorough cleansing. With its independent drive system and variable speed control, it can efficiently handle diverse bottle ranges. The SW Series supports continuous operations, integrating effortlessly with upstream and downstream machinery via tabletop conveyor belts. Its significant energy efficiency stems from a sanitary piping system that includes a pressure reducer and membrane electro valve, optimizing air usage. For maintenance, the machine offers easy internal accessibility, complete with a CIP-friendly design, minimizing downtime. This versatile solution caters to pharmaceutical manufacturers, cosmetic producers, and biotechnology firms, guaranteeing high purity for products like vaccine vials, essential oil bottles, and vitamin supplements.

Benefits

  • Ensures contamination-free packaging by removing particulates effectively.
  • Seamlessly integrates into production lines for uninterrupted workflow.
  • Reduces operational energy usage through optimized air systems.
  • Meets GMP and FDA standards, ensuring regulatory compliance.
  • Easy maintenance with accessible design for quick cleaning.

General


Applications
Liquids,Bottles,Vials,Pharmaceuticals
End products
Antibiotic vials,Vitamin supplement bottles,Cough syrup bottles,Essential oil bottles,Vaccine vials
Steps before
Washing,Sterilizing
Steps after
Filling,Capping
Input ingredients
bottles,vials
Output ingredients
cleaned bottles,cleaned vials
Market info
Marchesini is renowned for manufacturing high-quality packaging machinery for the pharmaceutical and cosmetics industries, offering innovative, customized solutions with advanced automation and technology.

Technical Specifications


Automation
Automatic
Compliance with Regulations
cGMP,FDA standards
Material
AISI304,AISI316L stainless steel
Blowing System
Internal plunger-needle
Pockets on Blowing Wheel
32 pockets
Blowing Needles
32 needles
Suction Orifice Diameter
40 mm
Drive
Independent for conveyor and wheel
Working Speed Control
Yes

Operating Characteristics


Working mechanism
Automatic bottle and vial blower
Integration
Inline connection with upstream and downstream machines
Automation level
Automatic
Compliance
cGMP,FDA standards
Cleaning accessibility
Accessible for cleaning operations
Air handling
Compressed air blowing with sanitary piping
Particle collection
Underlying particles collection tank
Safety features
Safety torque limiter on blowing wheel
Speed control
Working speed control for conveyor belt and pocketed wheel

Physical Characteristics


Material used for paneling
AISI304 stainless steel satin finish
Material used for air contact components
AISI316L
Blowing system type
Internal plunger-needle blowing system
Vials/bottles handling
Intermittent blowing system
Bottles infeed method
Tabletop conveyor belt
Pocketed wheel
32 pockets
Blowing needles
32 needles
Bottles out feed method
Tabletop conveyor belt

Custom Options


Accessibility for cleaning
Yes
Bottle/Vial compatibility
Various sizes
Safety torque limiter
Available
