Automated headspace inspection system for parenteral containers

Ensure the integrity of pharmaceutical containers by precisely monitoring headspace oxygen, pressure, and carbon dioxide levels for guaranteed product quality and compliance.

Inspects Headspace and Container Closure Integrity

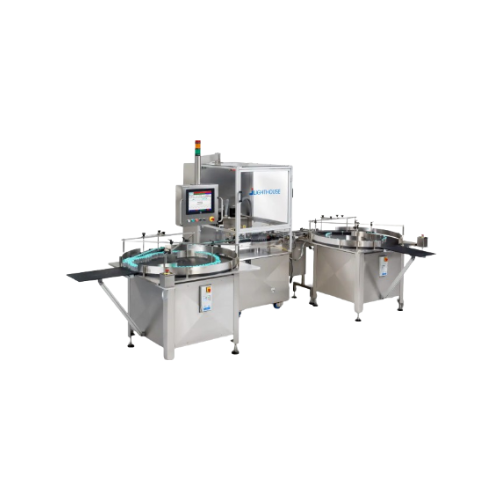

The PULSAR Headspace Inspection System from LIGHTHOUSE Instruments offers a robust solution for pharmaceutical manufacturers seeking reliable container closure integrity (CCI) and headspace gas analysis. Specializing in high-speed, continuous inspection, this system automates the monitoring of oxygen, pressure, and carbon dioxide levels in sealed parenteral containers. It’s ideal for applications involving vial-packaged vaccines, lyophilized injectables, and nitrogen-filled vials.

Capable of processing up to 9,000 containers per hour, the system supports a wide range of container sizes from 2R to 100R, with the flexibility to handle both tubing and molded configurations. The PULSAR system integrates seamlessly into existing production lines, featuring a 21 CFR Part 11 compliant database for secure data management. Engineered for efficiency, it utilizes optimized compressed nitrogen and air to minimize operational consumption.

The equipment comes with comprehensive installation and qualification support, including IQ/OQ, as well as user training to ensure smooth implementation. With its compact dimensions and quick delivery on a leasing basis, the PULSAR Headspace CCI Inspection System offers pharmaceutical manufacturers a versatile and compliant inspection capability.

Benefits

  • Maximizes inspection efficiency with high throughput of up to 9,000 containers per hour.
  • Ensures product integrity with comprehensive headspace and container closure integrity analysis.
  • Minimizes operational costs with reduced nitrogen and air consumption.
  • Provides secure data management through 21 CFR Part 11 compliance.
  • Facilitates seamless integration into existing production lines, supporting various container types and sizes.

General


Applications
Powder products,Parenteral containers,Biopharmaceuticals,Freeze dried products,Modified headspace liquid products,Pharmaceuticals
End products
Pre-filled syringe solutions,Lyophilized pharmaceutical injectables,Vial-packaged vaccines,Powdered antibiotics,Nitrogen-filled drug vials,Liquid medicinal solutions in modified headspace
Steps before
Freeze Drying,Modified Headspace Packaging
Steps after
Quality Assurance,Packing,Distribution
Input ingredients
sealed parenteral containers,product samples,freeze dried products,modified headspace liquid products,modified headspace powder products,vials,tubing containers,molded containers,amber containers,clear containers
Output ingredients
headspace oxygen levels,headspace pressure levels,headspace carbon dioxide levels,CCI inspection results
Market info
Lighthouse Instruments is known for its expertise in providing high-precision laser-based inspection and measurement systems, primarily for the pharmaceutical industry, specializing in non-destructive testing solutions for ensuring container integrity and product quality.

Technical Specifications


Container Sizes
Vials ranging in size from 2R to 100R,or 16.0 mm to 47.0 mm
Container Capability
Tubing or molded
Amber or clear
Maximum Throughput
9000 containers per hour
Software Compliance
21 CFR Part 11 compliant database
Dimensions
330 cm x 130 cm
Compressed Nitrogen
25 slpm @ >3.5 barg
Electrical Power
200 – 240 VAC 1-phase,15 amp 50/60 Hz
Compressed Air
35 scfm @ >5.5 barg

Operating Characteristics


Inspection method
Headspace oxygen,pressure,carbon dioxide levels
Inspection capability
100% automated inspection
Container sizes compatibility
2R to 100R,or 16.0 mm to 47.0 mm
Container type compatibility
Tubing or molded
Amber or clear
Operation speed
9000 containers per hour
Automation level
PLC-controlled
Project basis usage
Per project machine lease
Installation support
Lighthouse engineer support
System qualification support
IQ/OQ
User support
Training and start-up support

Material Compatibility


Container Size
2R to 100R,or 16.0 mm to 47.0 mm
Container Material
Tubing or Molded
Amber or Clear

Physical Characteristics


Machine footprint
330 cm x 130 cm
Compact footprint
Small footprint
Container Sizes
2R to 100R,or 16.0 mm to 47.0 mm
Container Capability
Tubing or molded
Amber or clear

Custom Options


Dimensions
330 cm x 130 cm
