Automated clipping system for flexible packaging

Achieve precise volume control and reduce material waste with this high-speed system, expertly designed for sealing pumpable products into flexible packaging materials, ensuring consistent output and efficiency.

Clips and Packages Industrial Explosives and Sealants

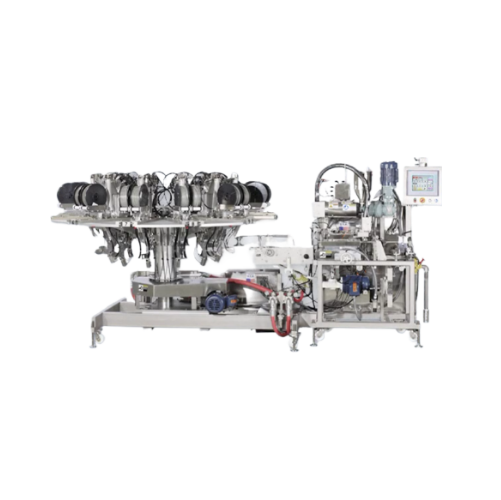

The TIPPER TIE Rota-Clip Automated Clipping System from JBT is engineered for industrial manufacturers who require precise packaging solutions for liquid and slurry products. Specializing in clipping and sealing processes, this system efficiently forms and secures industrial explosive gels, silicone sealants, and epoxy resin cartridges. It operates using a rotating table equipped with up to 12 clipping stations, each with a double clipper, ensuring rapid throughput exceeding 400 packages per minute. Designed for seamless integration, it supports constant output pumps and allows for quick product changeovers, minimizing downtime. The system’s HMI touch screen controls facilitate automation by storing unlimited recipes and regulating splicer, glue seal, and clipper operations. Available options include roll-to-film splicers and package code daters in right or left-handed configurations. The durable construction and PRoCAREĀ® service minimize maintenance, ensuring continuous, high-speed production without compromising safety standards.

Benefits

  • Maximizes production efficiency with speeds over 400 packages per minute.
  • Reduces labor costs with single-operator control.
  • Minimizes material waste with short tail clipping.
  • Enhances safety, meeting or exceeding industry standards.
  • Supports continuous operation with roll-to-film splicer for uninterrupted production.

General


Applications
Sealants,Adhesives,Industrial explosives
End products
Epoxy resin cartridges,Silicone sealants,Nitroglycerin chub packages,Industrial explosive gels,Polyurethane adhesives,Acrylic sealants
Steps before
Emulsion Preparation,Product Mixing
Steps after
Packaging,Labeling
Input ingredients
pumpable products,roll stock film,emulsion
Output ingredients
chub packages,packaged explosives,packaged sealants,packaged adhesives,cartridge
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Speed
Over 400 pieces per minute
Product Changeover Time
Quick and efficient
Film Usage
Economical roll stock film
Pump Compatibility
Compatible with leading brands of constant output pumps
Safety Standards
Meets or exceeds highest safety standards
Clipping Stations
Up to 12 clipping stations
Throughput
High throughput from rotating table
Automation
HMI touch screen controls
Sealing Method
Heat or high integrity triple-glue seal system
Operator Requirement
Single operator

Operating Characteristics


Automation level
Automated / PLC
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
Quick and efficient
CIP/SIP
CIP available
Cleaning method
Automated / Manual
Energy efficiency
High efficiency

Material Compatibility


Compatibility with pumpable products
Pastes,liquids,emulsions
Compatibility with flexible packaging materials
Roll stock film
Corrosive resistance
Meets high safety standards
Density/particle size
Varies with product specifications
Biological compatibility
Not applicable

Product type Characteristics


Product Type
Pumpable products
Container type
Flexible packaging materials
Applications
Industrial explosives and sealant packages

Physical Characteristics


Compact footprint
Yes

Custom Options


HMI touch screen controls
Integrated safety and motion control
Roll-to-film splicer
For extended production runs
Configuration options
Right-handed or left-handed
Package code dater
Automatic
