Ashing furnace for complete combustion

Ensure precise sample combustion with a furnace designed for optimal ash analysis, providing uniform airflow and temperature control essential for accurate material testing and quality assurance.

Ensures Complete Sample Ashing and Combustion

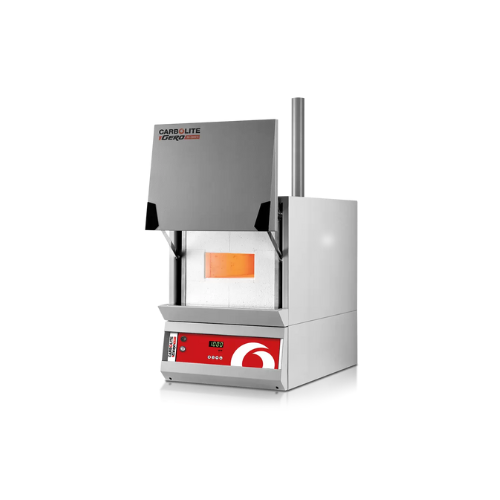

The AAF 11/3 and 11/7 from Carbolite Gero are designed to meet the rigorous demands of precise ashing and combustion processes in chemical, food, plastics, and mining industries. These furnaces ensure compliance with ISO 1171:2010 and ASTM standards, making them ideal for reliable material testing. Featuring a continuous flow of preheated air, they achieve excellent combustion uniformity across a large sample area. Operating at a maximum temperature of 1100 °C, the units are equipped with Carbolite Gero’s 301 controller for precise temperature management. Their robust construction includes an alumina-lined chamber for protection against chemical and mechanical wear, and a tall chimney facilitates efficient airflow regulation. The furnaces are particularly suited for processing solid and powdered materials such as charcoal briquettes, polyethylene pellets, and coal ash, offering integration flexibility with manual and continuous operations. Customizable with sophisticated digital controllers and over-temperature protection, the AAF 11/3 and 11/7 provide reliable, efficient, and safe performance for laboratory and processing applications.

Benefits

  • Ensures accurate and reliable ashing results with compliance to ISO and ASTM standards.
  • Optimizes sample preparation efficiency with even heat distribution and airflow.
  • Reduces operational costs through preheated air leading to optimal combustion efficiency.
  • Supports a wide variety of industries by accommodating both solid and powdered materials.
  • Enhances safety and reliability with robust construction and over-temperature protection options.

General


Applications
Hydrocarbon materials, Coal, Plastics, Foods
End products
Polyethylene pellets, Polypropylene fibers, Crude oil derivatives, Coal-derived coke, Pvc granules, Thermoplastic components, Coal tar, Coal ash, Charcoal briquettes, Food ash residue
Steps before
Sample Preparation, Weighing, Sample Placement
Steps after
Sample Cooling, Data Collection, Analysis, Reporting
Input ingredients
foods, plastics, coal, hydrocarbon materials
Output ingredients
ashed samples, combustion residues
Market info
Carbolite Gero is renowned for designing and manufacturing high-temperature laboratory and industrial furnaces and ovens, offering expertise in heat treatment solutions, with a reputation for quality, reliability, and precise thermal processing across various industries.

Technical Specifications


Operating Temperature
1100 °C maximum
Controller Type
Carbolite Gero 301 controller
Heating Zones
4 sided (2 sides, roof, hearth)
Chamber Size Options
3, 7 litres
Airflow Rate
4 to 5 changes per minute
Compliance Standards
ISO 1171
Phase Supply
2 phase electrical supply for AAF 11/7
Preheated Airflow
Yes
Chamber Liner Material
Hard wearing alumina based liner
Automation Options
Sophisticated digital controllers, multisegment programmers, data loggers

Operating Characteristics


Maximum Operating Temperature
1100 °C
Airflow Rate
4 to 5 changes per minute
Heating Method
4-sided heating (2 sides, roof, hearth)
Air Preheating
Preheating before chamber entry
Automation Level
Process timer with Carbolite Gero301 controller
Sample Handling
Sample tray and loading handle
Operational Compliance
ISO 1171

Material Compatibility


Ashing compatibility
Foods, plastics, coal, hydrocarbons
Temperature resistance
Up to 1100°C
Corrosion resistance
Alumina based liner protection
Reactive atmosphere compatibility
Yes, preheated air flow

Product type Characteristics


Material Types
Foods, plastics, coal, hydrocarbons


ISO Standard
ISO 1171
ASTM Standards
ASTM D3174-04
ASTM Standards
ASTM D4422

Physical Characteristics


Chamber size
3, 7 litres
Floor area
Large floor area
Chimney height
Tall chimney
Heating configuration
4 sided heating (2 sides, roof, hearth)

Custom Options


Control panel type
Carbolite Gero301 controller
Integration possibilities
Digital communication options
Control options
Manual to full automation
Heating configuration
4 sided heating
Airflow control
4 to 5 changes per minute
Power supply
2 phase electrical supply for AAF 11/7
