Apple coring and wedge slicing solution

Streamline your apple processing with precise coring and slicing to meet diverse product specifications, enhancing efficiency and reducing manual labor in fresh produce preparation.

Cores and Slices Apples into Wedges

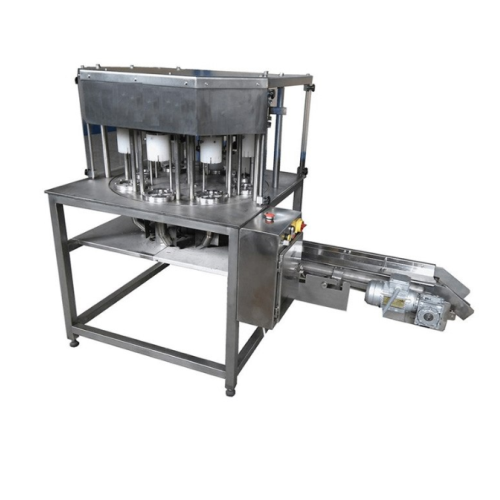

The Apple Coring and Wedge Slicing Machine from Kronitek is engineered for efficiency, transforming whole apples into precisely sliced wedges and cores, ideal for fruit processing and food preparation sectors. This machine uniquely combines manual feeding with semi-automatic processing to achieve a throughput of 500 kg/h. It utilizes adjustable cutting tools, allowing customization of the number of slices per apple, ranging from 4 to 12 wedges, according to production needs. This equipment is particularly suitable for producing fresh apple snack packs, apple pie filling components, and dehydrated apple slices. Constructed from stainless steel AISI 304, it offers excellent corrosion resistance, making it durable in various food processing environments. The separation of apple wedges and cores onto distinct conveyor belts ensures streamlined downstream processing, while the requirement for an additional air compressor for operating its pressure cylinders underscores its easy integration into existing processing lines.

Benefits

  • Enhances productivity with a 500 kg/h processing rate.
  • Reduces labor requirements by enabling semi-automatic slicing operations.
  • Customizable slicing options for diverse product specifications.
  • Durable, corrosion-resistant construction suitable for food-grade applications.
  • Streamlines product separation for efficient downstream processing.

General


Applications
Fruit processing,Food processing,Fresh produce processing,Fruit slicing equipment,Vegetable processing,Apple products
End products
Apple pie filling components,Apple slices,Pre-sliced apples for salads,Ingredients for fruit salads,Apple wedges,Dehydrated apple slices,Fresh apple snack packs,Apple cores
Steps before
Washing,Sorting,Inspection,Manual Loading
Steps after
Conveying,Packaging,Storage,Dehydration
Input ingredients
apples
Output ingredients
apple slices,apple cores,apple lobes,wedge slices
Market info

Technical Specifications


Capacity
500 kg/h
Conveyor drive
0.2 kW
Main drive power
0.5 kW
Dimensions
1960 x 900 x 1330 mm
Weight
200 kg
Material
Stainless Steel AISI 304
Automation
Manual

Operating Characteristics


Working Mechanism
Manual loading,automatic coring and slicing
Automation Level
Partially automated with manual loading
Batch vs. Continuous Operation
Batch
Changeover Time
Tool change for slice number adjustment
Cleaning Method
Manual
Air Incorporation Control
Additional air compressor required

Material Compatibility


Cleanability
Easy to clean due to stainless steel construction
Corrosive resistance (e.g. acids)
Stainless steel AISI 304

Product type Characteristics


Product Type
Apple

Physical Characteristics


Machine footprint
1960 x 900 x 1330 mm
Material
Stainless Steel AISI 304
Weight
200 kg
Feed method
Manual
Discharge method
Conveyor belt
Slicing options
4 to 12 lobes per apple

Custom Options


Number of slices per apple
4 to 12 pieces
Materials of construction
Stainless steel AISI 304
Additional equipment requirements
Air compressor for pressure cylinders
Customized slicing blades
Based on customer requirements
