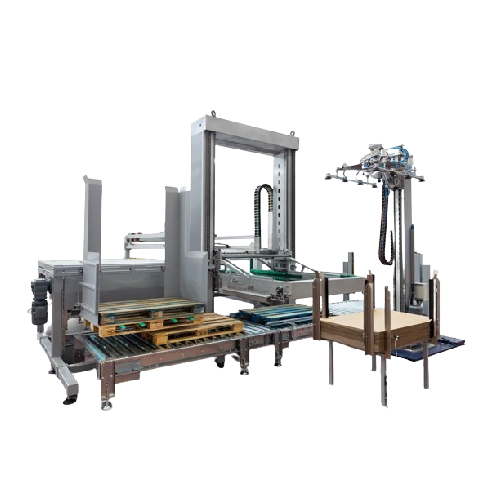

90-degree infeed palletizer

Achieve seamless integration and high throughput with a palletizer designed to optimize your production line by efficiently handling diverse product types with precision and reliability.

Palletizes Diverse Products Efficiently

The Dynamic 90° Infeed Layer Palletizer from OCME is engineered to streamline the organization of varied product types into precisely stacked pallets. This fully automated system efficiently handles drum packs, shrink-wrapped beverage packs, canned goods, and more, tailored for industries including beverage, food, and personal care manufacturing. Utilizing an advanced layer forming and compacting mechanism, it ensures stable pallet configurations for optimal downstream logistics. Capable of processing up to 300 layers per hour, it features dual infeed options for flexible integration. Its robust design includes a Mizar layer forming system and optional robotic manipulators, providing precise control over product handling and reducing manual intervention. Maintenance is simplified through self-centring guides and an automated layer-pad feeding system that ensures seamless operation with minimal downtime. Designed for high-speed operations, the Dynamic offers significant production uptime and efficiency improvements in diverse industrial settings.

Benefits

  • Enhances production speed by processing up to 300 layers per hour.
  • Reduces manual labor with fully automated layer-pad and pallet infeed systems.
  • Ensures product stability with precise layer forming and compacting techniques.
  • Increases operational flexibility with dual infeed options for various product types.
  • Minimizes maintenance interruptions through easy-access design and self-centring components.

General


Applications
Food,Personal care,Beverage,Tissue,Lubricants,Paper,Corrugated,Home
End products
Drum packs,Bottled sauces,Personal care product cartons,Shrink-wrapped beverage packs,Tissue paper rolls,Motor oil containers,Corrugated cardboard boxes,Canned goods
Steps before
Product sorting,Conveying,Inspection
Steps after
Stretch wrapping,Banding,Storage
Input ingredients
shrinked packs,cartons,crates,drums,pack with film,tissue product,tray,empty pallets,layer-pads
Output ingredients
palletized layers,stacked interlayer pads on pallets,compact and stable pallets
Market info
OCME, part of Aetna Group Italy, is renowned for manufacturing innovative, high-quality packaging and material handling solutions, including filling, palletizing, and conveying systems, with a strong reputation for reliability and technological advancement in industrial sectors.

Technical Specifications


Automation
Fully automated
Capacity
Up to 300 kg/layer
Infeed type
90° infeed
Pallet size
1200x1200 mm
Palletizing speed
Up to 300 layers/hour
Feeding system
Single and double infeed
Layer forming system
Mizar Layer Forming system

Operating Characteristics


Infeed Type
Single/Double Infeed
Automation Level
Fully Automated
Pallet Type Compatibility
1200x1200
Pallet Weight Capacity
Up to 300kg per layer
Output Rate
Up to 300 layers/hour
Safety Standards
High Safety Standard
Product Compatibility
Drum,Pack with film,Tissue product,Tray,Carton
System Integration
Mizar Layer Forming System
Feeding System
Automatic Feeding System for Layer-Pads
Empty Pallet Infeed System
Automated
User Interface
User Friendly / Program Maker Software
Installation Type
Fixed Pallet / Double Column Structure

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product Types
Drum,Pack with film,Tissue product,Tray,Carton

Physical Characteristics


Compact footprint
Extremely compact
Machine structure
Sturdy double-column structure
Maximum pallet load
Up to 300 kg per layer
Pallet size
1200x1200 mm
Infeed type
90° infeed
Feeding options
Single and double infeed
Layer forming system
Mizar Layer Forming system
Integration capability
Automatic system for layer forming

Custom Options


Control panel type
Graphical Interface
Integration possibilities
Automatic System Integration
