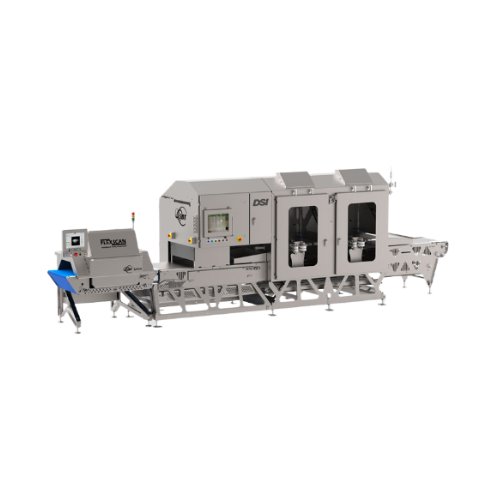

X-ray guided waterjet portioning system for pork ribs

Optimize your poultry and meat processing with precise, efficient portioning and slicing, ensuring consistent quality and reducing labor dependency through advanced X-ray guidance and waterjet technology.

Portions and Inspects Tough Meat Products

The JBT X-ray Guided Waterjet Portioning System leverages the DSI™ 800 S series waterjet system with the Flexscan™ X-ray system to tackle challenging meat processing tasks like pork ribs and seafood. This dual-lane solution excels in simultaneously locating bones while accurately slicing products based on user-defined specifications. With an advanced X-ray inspection mechanism, it meticulously identifies bone locations, enabling precise portioning and sorting for a range of products, including pork rib cuts and boneless pork loins. The system handles high-speed operations typical in food processing environments, reducing manual labor and enhancing product quality. Offering cutting-edge automation, it integrates seamlessly into existing lines, featuring expandability with up to eight cutter modules. Its design includes improved ventilation to reduce waterjet mist and noise, supported by an upgraded cutter assembly to minimize maintenance requirements. Adaptable to varying throughput needs, it ensures efficient operation, optimized for energy use with a 6000 bar waterjet upgrade, bringing down costs and boosting efficiency. Constructed for durability, the system aligns with stringent food safety standards, ensuring compliance with industry norms.

Benefits

  • Enhances cutting precision and reduces manual labor with integrated X-ray inspection and waterjet technology.
  • Increases processing efficiency and throughput with a high-speed, continuous operation.
  • Lowers maintenance costs and extends equipment lifespan with upgraded cutter assembly.
  • Reduces workspace noise and mist, creating a safer working environment.
  • Provides scalability and customization with a modular platform, adaptable to production needs.

General


Applications
Seafood,Pork ribs,Meat,Tough meat products,Poultry
End products
Processed chicken breast fillets,Breaded fish portions,Boneless pork loins,Precooked sausage links,Bone-in pork chops,Pork rib cuts
Steps before
Fresh Cut Processing,Injection,Marination,Preparation
Steps after
Packing,X-ray Inspection
Input ingredients
pork ribs,difficult meat products
Output ingredients
portionable meat sections,boneless pork sections
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Cutting Pressure
60,000 psi (4000 bar) - 87,000 psi (6000 bar)
Cutting Method
Waterjet
Inspection Type
X-ray Guided
System Configuration
Dual-lane
Expandable Modular Platform
Two,Four,Six,Eight Cutters
Integration
Direct integration with JBT X-ray system
Flexibility and Growth Capacity
Expandable
Noise Reduction
Enhanced Ventilation and Jet Capture

Operating Characteristics


Cutting Pressure
60,000 psi / 87,000 psi
Integration Level
Direct Integration with X-ray System
Automation Level
Automated Processing
Modular Platform
Expandable in Two,Four,Six,or Eight Cutters
Feature Selection
User-Selectable Products Based on Bone and Feature Location
Ventilation and Jet Capture
Enhanced to Reduce Mist and Noise

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Yes
Cleanability
Easy to clean
Biological compatibility
Food-grade safe

Product type Characteristics


Bone detection capability
Yes

Physical Characteristics


Expandable Modular Platform
Two,Four,Six,or Eight Cutters
Direct Integration
JBT X-ray System
Machine Footprint
Dual-lane System

Custom Options


Control panel type
HMI / Touchscreen
Integration with X-ray system
Direct integration
Modular platform
Two,four,six,or eight cutters
