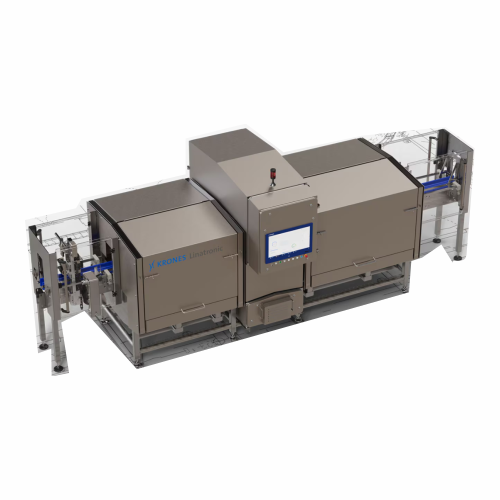

X-ray container inspection system for beverages

Ensure the integrity and quality of your beverage products with cutting-edge X-ray imaging technology that detects what traditional systems miss, all while maintaining high-speed continuous operations.

Inspects and Verifies Full Beverage Containers

The Linatronic 774-X from Krones is an X-ray inspection system designed to ensure the integrity of full beverage containers in high-speed production lines. Utilizing dual X-ray generators and line cameras positioned on either side of the conveyor, it delivers comprehensive 360° inspection of container bases, accommodating both transparent and opaque materials, such as glass bottles, cans, and PET containers. With an output capability of 10 to 120 meters per minute, it effectively handles products like lager beer, sparkling water, cola, and orange juice. Key features include the use of standard transport chains for seamless integration post-filling and labeling, shared rejection systems for efficient fault management, and high reliability with minimal investment and maintenance costs. Its robust construction omits wear-prone belt stations, reducing future servicing expenses while ensuring high product safety standards.

Benefits

  • Ensures product safety by reliably inspecting a wide range of container types, including opaque and viscous-filled bottles.
  • Minimizes operational costs with low investment and maintenance due to the elimination of wear-intensive components.
  • Enhances production efficiency with rapid throughput capabilities of up to 120 meters per minute and minimal container spacing requirements.
  • Facilitates seamless integration into existing lines using standard transport chains and shared rejection systems.
  • Protects brand reputation by significantly reducing the risk of product complaints through thorough post-filling inspections.

General


Applications
Carbonated soft drinks,Water,Juice drinks,Beer
End products
Lager beer,Orange juice,Cola,Sparkling water
Steps before
Filling,Capping
Steps after
Labelling,Packing
Input ingredients
glass bottles,cans,PET containers,transparent products,opaque products,beer,water,carbonated soft drinks,juice drinks
Output ingredients
inspected glass bottles,inspected cans,inspected PET containers,faulty containers
Market info
Krones is renowned for its expertise in manufacturing beverage and liquid food processing and packaging equipment, offering comprehensive solutions that include filling, packaging technology, and processing systems, and is reputed for innovation and quality in the industry.

Technical Specifications


Inspection speed
10 to 120 m/min
Container clearance
Minimum 2 mm
Chain width
300 mm
Detection type
X-ray
360° inspection
Yes
Container type compatibility
Glass bottles,cans,PET containers

Operating Characteristics


Inspection technology
X-ray imaging
Automation level
PLC
Container capability
Glass bottles,cans,PET containers
Object detection
Opaque and transparent objects
Integration with line
Standard transport chains
Rejection system
Ecopush or Ecoslider Pro
Minimum container clearance
Approx. 2 millimeters
Cycle speed
10 to 120 meters per minute
Shared rejection
After filling and labelling

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container base inspection
360° Imaging X-ray Technology
Product transparency
Transparent and Opaque

Physical Characteristics


Machine footprint
Compact for line integration
Transport chain type
Metal or plastic

Custom Options


Control panel type
Standard integration with conveyor controls
Integration possibilities
Compatible with standard transport chains (metal or plastic)
Discharge method
Ecopush or Ecoslider Pro
Detection type
Imaging X-ray technology
Container type compatibility
Glass bottles,cans,PET containers
