Wrap around sleeving machine for single serve cups
Seamlessly organize and wrap single-serve cups with precision and speed, enhancing your packaging line’s efficiency and flexibility for various product assortments.
Organizes and Wraps Single Serve Cups Efficiently

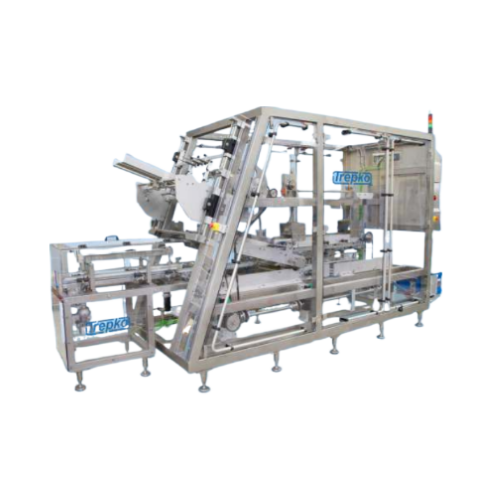

The 770 Series Wrap Around Sleeving Machine by Trepko specializes in efficiently organizing and sleeving single-serve cups across various pack patterns. Designed for the food and beverage industry, it handles applications such as yogurt, dessert, and coffee cup packaging. With a user-friendly quick-changeover process, the machine offers flexibility in packaging designs, ideal for fast-paced operations. Capable of managing up to 160 sleeves per minute, it integrates seamlessly into high-speed production lines, leveraging PLC control for parameter adjustments and recipe management. Operating at 9 kVA and consuming 500 l/min of air, it ensures energy efficiency and robust performance. Available format parts and recipes stored in the PLC facilitate rapid transitions between production runs, enhancing workflow efficiency.
Benefits
- Enhances packaging efficiency with a quick-changeover feature, minimizing transition time between products.
- Supports diverse packaging designs to cater to multiple single-serve products within the same production line.
- Increases operational speed, managing up to 160 sleeves per minute for high-demand contexts.
- Integrates easily into existing high-speed production lines with PLC-controlled adjustments for precise operation.
- Utilizes efficient energy consumption to optimize processing costs and reduce overall production expenses.
- Applications
- Snack packs,Coffee cups,Single serve cups,Yogurt cups,Dessert cups,Food containers,Beverage cups,Dairy products,Confectionery cups
- End products
- Pudding cups,Single-serving yogurt,Juice cups,Trail mix packs,Yogurt parfaits,Espresso shots,Creamers,Chocolate cups,Salsa containers
- Steps before
- Filling,Sealing
- Steps after
- Palletizing,Shipping
- Input ingredients
- single serve cups,cardboard sleeve
- Output ingredients
- wrapped cups,pack patterns
- Market info
- Automation
- PLC-controlled
- Power
- 9 kVA
- Air pressure
- 6 bar
- Air consumption
- 500 l/min
- Maximum output
- 160 sleeves per minute
- Sleeve dimension Length
- 100-300 mm
- Sleeve dimension Width
- 100-150 mm
- Sleeve dimension Height
- 80-120 mm
- Packed pattern
- 3 x 1 / 2 x 1 / 2 x 2 / 1 x 1
- Automation level
- PLC-controlled
- Changeover time
- Fast change-over with quick-release parts,parameter selection in PLC
- Batch vs. continuous operation
- Batch
- Energy efficiency
- Optimal packaging solution for various pack patterns
- Sleeve handling
- Wrap around sleeving of various sizes
- Output rate
- 160 sleeves per minute
- Cardboard compatibility
- Wrap-around sleeve
- Package type compatibility
- Single serve cups
- Sleeve dimension
- L 100-300 W 100-150 H 80-120
- Packed pattern
- 3 x 1 / 2×1 / 2 x2 / 1×1
- Control panel type
- PLC with recipe management
- Sleeve compatibility
- Various pack patterns and sleeves
- Pack pattern configuration
- Numerous pack-patterns
- Changeover mechanism
- Quick-release,easily-accessible format parts
- Integration capability
- Recipe parameters saved in PLC
