Wort aeration system for craft breweries

Optimize your fermentation process with precise aeration control, ensuring optimal yeast activity and enhanced flavor profiles in your craft beers.

Oxygenates Wort for Fermentation Initiation

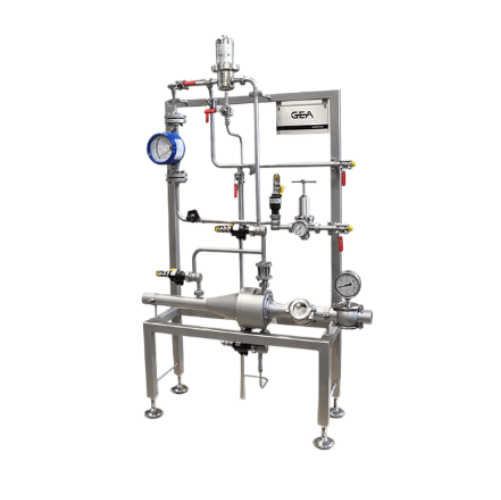

The GEA WORTSTAR Craft Wort Aeration Unit is designed for craft brewers seeking to enhance wort oxygenation with precision. This semi-automatic system uses a unique bubble size distribution method by creating a partial vacuum when wort flows into the aeration nozzle, entraining air and increasing oxygen uptake. Applicable in craft brewing and beverage production, it supports the fermentation of beers like pale ale, IPA, and lager. With a throughput of 30 to 195 hl per hour, the unit seamlessly integrates into your existing setup, offering continuous, hygienic operation with easy CIP cleaning. Designed with an annular gap nozzle for sterile air introduction, it ensures stable fermentation and superior beer quality while maintaining efficient energy use.

Benefits

  • Enhances fermentation process efficiency with optimal oxygen uptake.
  • Minimizes risk of contamination through sterile air introduction.
  • Streamlines cleaning and maintenance with easy CIP capability.
  • Ensures consistent beer quality with precise aeration control.
  • Integrates seamlessly into brewing operations, reducing manual intervention.

General


Applications
Fermentation,Craft beer,Brewing,Beverage production
End products
Pilsner,Belgian ale,Lager,Amber ale,Pale ale,Ipa (india pale ale),Stout,Kolsch,Saison,Brown ale,Sour beer,Wheat beer,Porter
Steps before
Cooling,Wort preparation
Steps after
Fermentation,Yeast activity monitoring
Input ingredients
wort,oxygen,sterile air
Output ingredients
oxygenated wort,fermented beer
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Capacity range
30 hl to 195 hl per hour
Standard sizes (wort pipe)
DN 25 to DN 50
Wort flow rate
1.0 to 2.5 m/s
Pressure loss wort pipe
Max. 1.5 bar
Air pressure
6.0 to 8.0 bar Ü
Control
Semi-automatic

Operating Characteristics


Working Mechanism
Wort Aeration
Integrated Steps
Oxygenation post cooling
CIP Principles
Steam sterilization and CIP cleaning
Flow Type
Inline Continuous
Bubble Size Distribution
Fine,evenly distributed
Sterile Air Introduction
Through annular gap nozzle
Automation Level
Semi-automatic

Material Compatibility


Biological compatibility
Yes
Cleanability
CIP Sterilization
Corrosive resistance (e.g. acids)
Yes
Density/particle size
Adjustable for bubble distribution

Physical Characteristics


Control panel type
Semi-automatic
Compact footprint
DN 25 to DN 50
Discharge method
Annular gap nozzle
Flow rate
1.0 to 2.5 m/s
Pressure loss
Max. 1.5 bar
Air pressure
6.0 to 8.0 bar Ü

Custom Options


Control panel type
PLC-based
HMI type
Touchscreen
Integration possibilities
SCADA,brewery management systems
