Water deaeration module for breweries and soft drink manufacturers
Ensure high-quality beverage production by efficiently removing dissolved oxygen from water, enhancing product stability and taste while minimizing the risk of contamination. Ideal for small-scale operations requiring precise gas stripping and easy maintenance.
Deoxygenates Water for Beverage Production

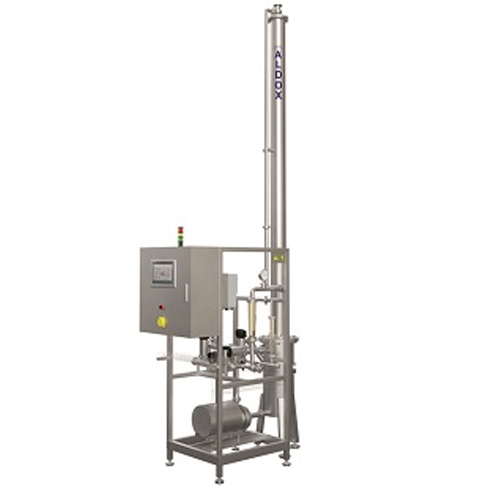

The Aldox Mini Water Deaeration Module by Alfa Laval is a purpose-built solution for breweries and soft drink manufacturers seeking efficient oxygen removal from process water. Utilizing a gas stripping process with an optimized internal packing material, the module achieves dissolved oxygen levels as low as 0.01 ppm, enhancing product quality by reducing oxygen pickup in craft beer and soda production. With a compact, skid-mounted design, it seamlessly integrates into existing lines, handling capacities of 10-40 hl/h (4.4-17.6 gpm). Fully automated with PLC control and integrated CIP, the module ensures easy operation and maintenance, while its efficient use of carbon dioxide—retaining over 95%—offers superior performance without the need for pressure-rated vessels. Operating within a temperature range of 10-30°C, the Aldox Mini is an energy-efficient, scalable solution for maintaining beverage purity and consistency.
Benefits
- Ensures beverage quality by minimizing oxygen levels to less than 0.01 ppm.
- Increases carbonation efficiency with over 95% carbon dioxide retention.
- Offers seamless integration into existing systems with a compact, skid-mounted design.
- Simplifies maintenance with an integrated Cleaning-in-Place system.
- Optimizes resource use, reducing gas losses to below 5%.
- Applications
- Beer production,Soft drink production
- End products
- Craft beer,Lager beer,Pale ale,Cola beverages,Sparkling water,Flavored sodas
- Steps before
- Water Filtration,Water Pre-Treatment
- Steps after
- Packaging,Storage,Bottling
- Input ingredients
- water,carbon dioxide,dissolved oxygen
- Output ingredients
- deaerated water,deoxygenated water,carbon dioxide dissolved in water
- Market info
- Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.
- Deaeration level
- < 0.02 ppm
- Improved deaeration option
- 0.01 ppm
- Carbon dioxide retention efficiency
- Above 95%
- Capacity range
- 10-40 hl/h (4.4-17.6 gpm)
- Temperature range
- 10-30°C (50-86°F)
- Installed power
- 3 kW
- Carbon dioxide usage
- 1-10 Kg/h (2.2-22 lbs/h)
- Purity of carbon dioxide
- 99.98%
- Gas losses
- < 5%
- Automation
- Fully automatic with PLC
- CIP integration
- Integrated CIP program
- Working mechanism
- Gas stripping process
- Integrated steps
- Deaeration,CIP
- CIP/SIP
- Integrated CIP
- Automation level
- PLC-controlled
- Batch vs. continuous operation
- Continuous
- Carbon dioxide retention efficiency
- Above 95%
- Dissolved oxygen level
- Less than 0.01 ppm
- Cleanability
- Integrated CIP program
- Corrosive resistance (e.g. acids)
- Suitable for CO₂ and low oxygen levels
- Compact footprint
- Skid-mounted design
- Control panel type
- PLC-controlled
- Improved deaeration level
- 0.01 ppm
- Control panel type
- PLC-controlled
- Integration capabilities
- CIP program integrated
