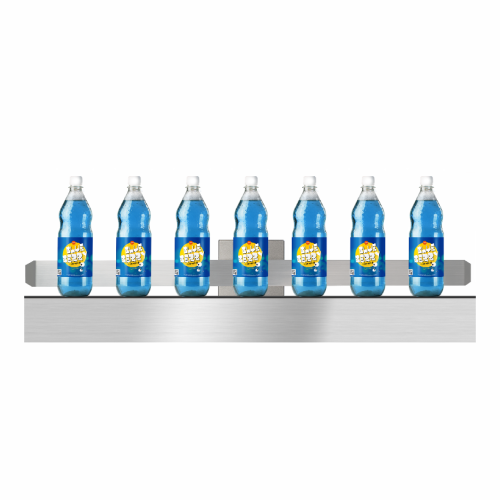

Ultrasonic leak detection system for carbonated beverages

Ensure the integrity of your carbonated beverages by precisely detecting and removing leaking bottles, enhancing both product quality and production efficiency.

Detects Leaks and Analyzes Fill Levels

The HEUFT Exciter from HEUFT SYSTEMTECHNIK is a sophisticated ultrasonic fobbing system designed for beverage bottling applications, focusing on ensuring product integrity and quality. Utilizing ultrasonic vibrations, it identifies and addresses leakage in bottles filled with carbonated beverages, preventing contamination and microbial spoilage. This system is tailored for use with both glass and PET bottles, effectively integrating into high-speed production lines with continuous operation. The HEUFT Exciter’s innovative approach avoids the need for unhygienic water baths, instead using a direct vibration technique on the conveyor belt. It detects and measures product leakage with a downstream fill level measurement system, ensuring even the smallest faults are addressed accurately. Supported by HEUFT’s rejection systems, faulty bottles are promptly removed from the production flow, minimizing recalls. It also allows for easy brand changes, adapting to various bottle types with precise ultrasonic vibration adjustments. Featuring a compact, controlled design that optimizes energy use, the HEUFT Exciter offers reliable performance while minimizing product loss and maintenance requirements.

Benefits

  • Prevents product contamination by accurately detecting and rejecting leaking bottles.
  • Enhances line efficiency with direct ultrasonic vibration, eliminating the need for disruptive water baths.
  • Reduces downtime and switching errors with fast, simple adaptation for brand changes.
  • Ensures continuous high-speed operation without compromising product quality.
  • Minimizes product loss with precise fill level detection and accurate fault rejection.

General


Applications
Beverages,Pet bottles,Carbonated drinks,Soft drinks,Beer,Glass bottles
End products
Soda,Tonic water,Lager,Lemon-lime soda,Ginger ale,Sparkling water,Root beer,Cola,Carbonated fruit juice,Ale
Steps before
Bottle filling,Capping,Conveyor loading
Steps after
Fill level measurement,Fault rejection,Packing,Labelling
Input ingredients
glass bottles,PET bottles,carbonated drinks,beers,soft drinks
Output ingredients
foaming carbonated drinks,leaking bottles,underfilled bottles
Market info
HEUFT is known for its expertise in inline quality inspection systems and automation solutions for the food, beverage, and pharmaceutical industries, with a reputation for innovation and reliability in ensuring product safety and integrity.

Technical Specifications


Leak Detection
Ultrasonic fobbing
Conveyor Type
Running conveyor
Amplitude Adjustment
Adaptable for bottle type
Pressure Increase Method
Ultrasonic vibrations
Control Unit
Electronic control unit
Vibration Transmission
Low-friction metal guide rail

Operating Characteristics


Working mechanism
Ultrasonic fobbing
Leak detection method
Vibration-induced foaming
Integration
Inline with conveyor
Changeover adaptability
Manual adjustment for bottle type
Product contamination prevention
No ultrasonic bath
Direct transmission
Automation level
Automated rejection system

Product type Characteristics


Container type
Carbonated bottles

Physical Characteristics


Compact footprint
Yes
Control panel type
Electronic
Discharge method
Conveyor
Module type
Ultrasonic
Guide rail material
Metal,low-friction
Vibration transmission
Ultrasonic vibrations directly on conveyor

Custom Options


Control panel type
Electronic control unit
Vibration amplitude adjustment
Adjustable during brand changes
Guide rail positioning
Adjustable height and position
Integration possibilities
Downstream fill level measurement
