Twin-column palletizer for flexible packaging feed

Optimize your production line with flexible and high-speed palletizing, efficiently handling a variety of packaging types—from cartons to shrink packs—while minimizing space requirements and maintenance efforts.

Palletizes and Organizes Diverse Packaging Formats

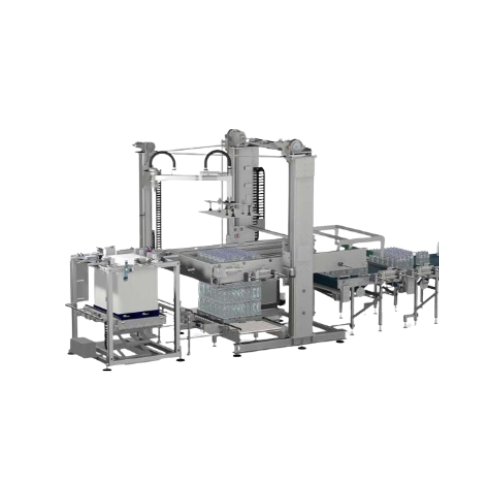

The Innopal PB L palletizer from KHS Group is a versatile twin-column palletizer designed to address a variety of packaging needs in the beverage, food, and non-food sectors. Engineered to seamlessly integrate into your production line, it excels in high-speed, precise palletizing of both returnable and non-returnable packaging, such as cartons, trays, shrink packs, and low-wall plastic crates. Capable of handling up to 150 layers per hour, this palletizer ensures efficient processes with its modular and flexible design.

The equipment uses innovative layer handling technology that adapts to different packaging formats, facilitated by KHS’s robust automation systems for enhanced operational efficiency. Its construction minimizes maintenance with advanced servo technology, cog belts, and fewer moving parts, optimizing durability and energy consumption. The Innopal PB L is compact, eliminating the need for a conventional layer preparation station, while offering optional features like a pallet liner magazine for enhanced flexibility. Tailored to meet specific industry requirements, this palletizer offers configurable options and full engineering support, ensuring it meets your operational and production demands.

Benefits

  • Increases packaging flexibility with dual capability for returnable and non-returnable formats.
  • Enhances productivity by processing up to 150 layers per hour.
  • Minimizes maintenance costs due to advanced servo technology and durable components.
  • Conserves factory floor space by eliminating the need for a conventional preparation station.
  • Integrates seamlessly with existing automation systems to streamline operations and reduce labor requirements.

General


Applications
Food,Beverages,Cartons,Low-wall plastic crates,Non-food,Trays,Shrink packs,Individual packets
End products
Cleaning supplies,Pet food packs,Shampoo bottles,Snack trays,Bottled water,Laundry detergent containers,Milk cartons,Health supplements packets,Lotion packets,Wine cartons,Yogurt pouches,Soup cartons,Beer crates,Juice bottles,Carbonated soft drinks,Bakery trays,Canned vegetables,Detergent bottles
Steps before
Container design,Secondary packaging,Beverage filling,Production planning
Steps after
Packing,Packaging,Labeling,Distribution
Input ingredients
cartons,trays,shrink packs,individual packets,bags,low-wall plastic crates
Output ingredients
palletized packages
Market info
KHS is known for manufacturing innovative filling and packaging systems for the beverage, food, and non-food industries, renowned for their engineering expertise, high-quality standards, and sustainable solutions in ensuring efficient production processes.

Technical Specifications


Throughput
Up to 150 layers/h
Palletizer Design
Twin-column
Packaging Feed
Low and high options
Adaptability
Individually adaptable
Palletizing Task Flexibility
High flexibility
Integrated Level Compensation
Yes
Layer Changeover
Fully automatic option
Automation Concept
KHS InnoPET iflex
Space Requirement
Small
Pushover Plate
Robust
Maintenance
Minimized
Servo Technology
Latest technology
Changeovers
Fast and reliable

Operating Characteristics


Integrated Level Compensation
Yes
Flexibility
Twin-column design
Packaging Feed
Low / High
Changeover Speed
Fast / Reliable
Sparing Part Requirement
Minimized
Throughput
Up to 150 layers/h
Automation Level
Modular / Integrated
Cleaning Method
Minimal Maintenance
Palletizer Type
Twin-column
Space Requirement
Compact

Product type Characteristics


Packaging type
Cartons,trays,shrink packs,individual packets,bags
Returnable packaging
Low-wall plastic crates
Industries
Beverage,food,non-food industries

Physical Characteristics


Machine footprint
Compact
Packaging feed
Low and high options
Discharge method
Manual or automatic liner supply
Handling capacity
Up to 150 layers/h

Custom Options


Control panel type
Manual / Automatic
Integration possibilities
KHS InnoPET iflex modular automation
Pallet liner magazine
Manual / Automatic liner supply
Packaging feed level
Low / High
Palletizing task customization
Flexible with twin-column design
