Turkey thigh skinning and deboning system
Achieve precision in turkey thigh processing with a system that seamlessly separates meat from bone and skin, utilizing bladeless technology and high-pressure water jets to maximize yield and reduce labor requirements.
Debones and Skins Turkey Thighs Efficiently

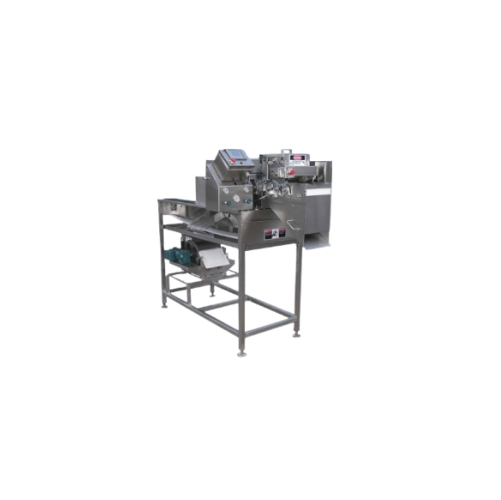

The CFS-TSK-1 Turkey Thigh Skinner-Deboner by Prime Equipment Group combines innovative bladeless skinner technology with high-pressure water jets for precise meat separation. Designed for poultry processors, it efficiently debones and skins, producing clean fillets ready for trimming. Operating continuously at high speed, it requires only a single operator, reducing labor costs. The unit’s simple design ensures reliable performance and minimal bone fragmentation, maximizing yield. Its integration into production lines is seamless, thanks to its compact size and connectivity options. Water usage is optimized at 10.0 GPM, with a minimum 40 PSI, while the electrical system is powered by 480V, 80 amps. Built for durability, the machine’s robust construction supports high-volume operations, making it a vital component in poultry processing environments.
Benefits
- Enhances yield with precise meat separation, minimizing waste.
- Lowers labor costs through single-operator functionality.
- Maintains high throughput with continuous, high-speed operation.
- Reduces bone fragmentation for superior fillet quality.
- Integrates easily into existing poultry processing lines.
- Applications
- Seafood,Meat,Poultry
- End products
- Deboned turkey thighs,Turkey thigh fillets,Skinless turkey thighs
- Steps before
- Portioning,Skinning,Trimming
- Steps after
- Packing,Freezing,Chilling,Cooking,Portioning,Slicing
- Input ingredients
- turkey thighs
- Output ingredients
- skinless turkey thigh fillets,deboned turkey meat
- Market info
- JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.
- Electrical Requirements
- (1) 2 hp,(1) 0.18 hp
- 480V,3 ph,60 Hz,80 amps
- Water Requirements
- (1) 2 connections
- 10.0 GPM (52.99 LPM)
- 40 PSI min.
- Air Requirements
- 100 PSI minimum
- Dry,for maintaining cylinder pressure
- Does not consume air
- Pump Requirements
- (1) 40 hp
- 480V,60 Hz
- Net Weight
- Base Unit
- Net Weight
- Hammelmann Pump Stack
- Working mechanism
- Bladeless Skinner and High-Pressure Water Jet
- Automation level
- Single Operator
- Batch vs. continuous operation
- Inline Continuous
- Yield Maximization
- High Yield with Minimal Bone Fragmentation
- Labor Efficiency
- Single Operator
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine Footprint
- Not specified
- Base Unit Weight
- 1,500 lbs (680 kg)
- Hammelmann Pump Stack Weight
- 600 lbs (272 kg)
- Feed/Discharge Method
- Water jet
- Control panel type
- Simple,single operator interface
- Integration possibilities
- Compatible with existing processing lines
