Turkey heart processing system

Streamline your turkey heart processing with precision trimming and efficient membrane removal, enhancing yield and product consistency in high-speed operations.

Trims and Processes Turkey Hearts Efficiently

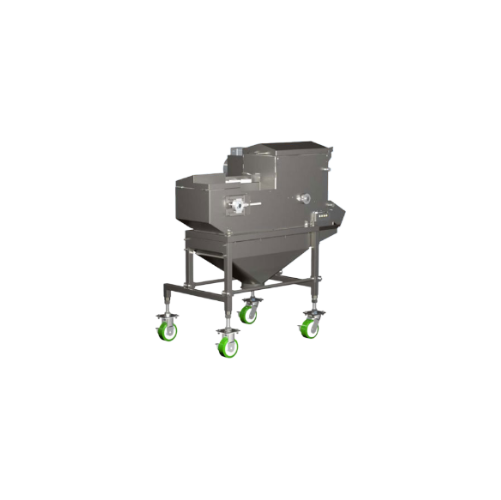

The THP-1 Turkey Heart Processor from Prime Equipment Group is a specialized machine engineered for precise trimming and processing of turkey hearts. This system efficiently removes the aorta and arterial materials, enhancing your production line by delivering clean, atrium-free heart cuts. Operating at speeds exceeding 40 pieces per minute, the THP-1 integrates seamlessly into high-speed, continuous processing lines, minimizing manual labor while improving yield consistency. It features removable product cavities for streamlined loading and quick sanitation, ideal for meat and poultry processing facilities. With robust construction, it operates with (2) 1 hp and (1) 1/2 hp motors, maintaining energy efficiency with a requirement of 480V, 3 ph, and 60 Hz. The THP-1 is a reliable choice for facilities looking to refine their evisceration operations while ensuring product quality through precise mechanical processing.

Benefits

  • Enhances production efficiency by reducing manual labor through automated arterial trimming.
  • Boosts product yield and consistency with precision trimming for atrium-free turkey hearts.
  • Ensures operator safety with a guarded cutting area and user-friendly design.
  • Simplifies maintenance with removable product cavities for quick and thorough cleaning.
  • Supports continuous high-speed operations, processing over 40 hearts per minute, leading to increased output.

General


Applications
Seafood,Meat,Poultry
End products
Processed turkey heart cuts,Turkey hearts,Atrium-free turkey hearts
Steps before
Slaughtering,Evisceration,Washing,Inspection,Sorting
Steps after
Peeling,Membrane Removal,Fat Trimming,Chilling,Packaging
Input ingredients
raw turkey hearts,unprocessed turkey hearts
Output ingredients
trimmed turkey hearts,hearts with aorta and arterial material removed,hearts without pericardial membrane,hearts with excess fat removed
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Speed
Over 40 pieces per minute
Operator Requirements
Single operator
Motor Specifications
(2) 1 hp,(1) 1/2 hp motor
Electrical Requirements
480V,3 ph,60 Hz,30 amps
Water Connection
1/2″ connection
Water Usage
2.0 GPM (7.57 LPM)
Water Pressure
30-60 PSI
Net Weight
400 lbs (181 kg)
Automation
Removable product cavities for easy loading

Operating Characteristics


Operating speed
40 pieces per minute
Automation level
Single operator
Batch vs. continuous operation
Continuous
Changeover time
Easy loading and quick changeovers
Cleaning method
Removable product cavities for easy sanitation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Not specified
Net Weight
400 lbs. (181 kg)
Control panel type
Not specified
Discharge method
Pneumatic or mechanical transition to peeler roller bed
Operation speed
40 pieces per minute

Custom Options


Compact footprint
Space-efficient design
