Turkey drumette and wing deboner

Achieve high-yield deboning of turkey drumettes and wing tips with precision water jet technology, ensuring efficient meat separation without bone chipping for food processors demanding consistent, quality outputs.

Debones and Portions Turkey Drumettes and Wing Sections

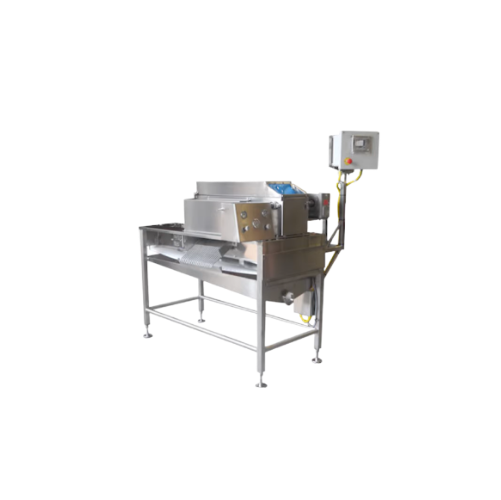

The CFS-DR-W Drumette Wing Deboner for Turkey from Prime Equipment Group revolutionizes high-volume poultry processing by employing precise water jet technology to separate meat from bone efficiently. This equipment ensures a high yield of deboned turkey drumettes and wing tips without bone chipping, allowing seamless integration into continuous, automated production lines. It serves poultry processors and meat processing facilities, optimizing operations with its simple design that requires only a single operator for effective functioning. The deboner operates continuously, effortlessly handling high-speed processing demands. Electrical, water, and air specifications ensure robust performance: powered by a 2 hp motor and supported by a 20 hp pump, while maintaining water flow at 7.0 GPM and air pressure at 100 PSI. Built for integration into existing systems, it supports further processing stages like cooking and freezing, making it a versatile asset in poultry, meat, and seafood industries. Its material construction is designed for durability and hygiene, aligning with rigorous food safety standards.

Benefits

  • Increases yield by achieving precise meat separation without bone chipping.
  • Minimizes labor requirements with single-operator functionality.
  • Enhances process efficiency with continuous and automated operation.
  • Seamlessly integrates into existing production lines for further processing stages.
  • Maintains production safety and hygiene standards with durable construction.

General


Applications
Seafood,Meat,Poultry
End products
Turkey wing sections,Deboned wing tips,Turkey drumettes,Deboned drumettes,Turkey fillets
Steps before
Sorting,Washing,Chilling
Steps after
Portioning,Cooking,Freezing,Chilling,Packaging
Input ingredients
turkey drumettes,tip-off wings,turkey legs,thighs
Output ingredients
deboned drumette meat,deboned wing meat,deboned leg meat,deboned thigh meat
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Automation
Single operator
Motor Power
2 hp motor
480V,3 ph,60 Hz,100 amps
Water Connection
2″ connection
7.0 GPM
40 PSI min
Pump Power
20 hp pump
480V,60 Hz,30 amps
Air Requirements
100 PSI minimum
Dry,maintained
Net Weight
1,500 lbs. (680 kg)
Deboning Yield
High yield for drumettes and tip-off wings
Precision
Water jet for precise separation

Operating Characteristics


Automation level
Single operator
Changeover time
Fast setup
CIP/SIP
Manual
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual

Physical Characteristics


Control panel type
Integrated
Compact footprint
Yes
Discharge method
Automatic
