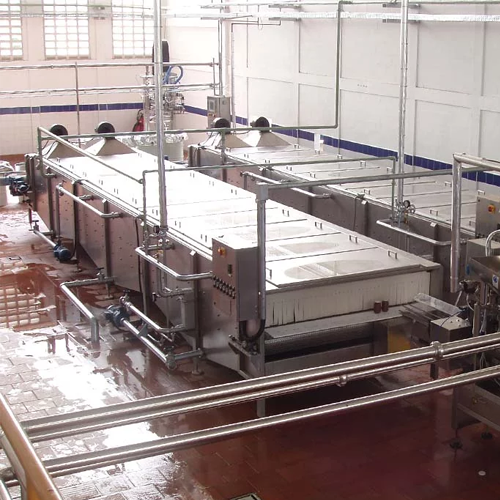

Tunnel pasteurizers for high and low viscosity fruit juices

Optimize your production with versatile tunnel pasteurizers, designed to handle everything from viscous tomato paste to refreshing fruit beverages, ensuring uniform heat treatment for product safety and quality.

Pasteurizes Liquid Foods Continuously

The Modular Tunnel Pasteurizer from Tropical Food Machinery is engineered to meet the rigorous demands of food and beverage producers requiring consistent pasteurization for liquid products. It features a modular design that allows seamless integration with existing processing and packaging lines. The equipment utilizes direct steam circuits to achieve precise heat treatment, ensuring product safety and quality for a variety of applications, including juices, nectars, and sauces. With processing capacities ranging from 200 to 2,500 kg/h, it accommodates various production scales. Constructed with corrosion-resistant materials, the pasteurizer supports robust cleaning and maintenance, while its continuous operation mode maximizes throughput efficiency. Customizable configurations and capacity options are available to suit specific production requirements.

Benefits

  • Enhances product safety and quality through precise pasteurization control.
  • Easily integrates into existing operations with a modular and scalable design.
  • Minimizes energy usage with efficient direct steam heating.
  • Accommodates diverse product types and packaging formats.
  • Reduces cleaning downtime with corrosion-resistant, easy-clean materials.

General


Applications
Concentrated juice,Jam,Fruit in pieces,Fruit beverage,Fruit purée,Nectars,Tomato paste,Juices,Fruit juice,Tomato sauce
End products
Strawberry jam,Tomato concentrate,Diced peaches,Orange juice,Grape juice,Marinara sauce,Mixed fruit beverage,Orange juice concentrate,Mango nectar,Apple purée
Steps before
Extraction,Blending,Evaporation
Steps after
Aseptic filling,Packing
Input ingredients
high viscosity fruit juices,low viscosity fruit juices,nectars,tomato paste
Output ingredients
pasteurized fruit juices,pasteurized nectars,pasteurized tomato paste
Market info
Tropical Food Machinery is known for manufacturing engineered-to-order (ETO) industrial equipment, specializing in fruit and vegetable processing machinery. They are reputed for innovation, quality, and global service in the food processing industry.

Technical Specifications


Product Inlet Temperature
> 85 °C
Pasteurization Temperature
95 °C
Capacity
200 Kg/h up to 2,500 Kg/h
Modular Structure
Yes
Heat Treatment
Direct steam circuit
Container type
Cans,Glass,PET bottles,Flexible bags

Operating Characteristics


Batch vs. continuous operation
Inline Continuous
Automation level
PLC
Cleaning method
CIP/Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity
High/Low
Container Type
Cans / Glass / PET bottles / Flexible bags
Heat Sensitivity
Yes/No
Foaming
Yes/No
Capacity
200–2,500 kg/h

Physical Characteristics


Machine Footprint
Modular structure
Adaptability
Adapted to customer needs
Dimensions
Varies with work capacity
Feed/Discharge Method
Continuous operation
Packaging Compatibility
Cans,glass,PET bottles,flexible bags

Custom Options


Modular design
Adaptable structure
Integration abilities
Pre-existing lines
Packaging compatibility
Cans,Glass,PET,Flexible bags
Work capacity
200 Kg/h - 2,500 Kg/h
Custom dimensions
Based on capacity needs
